Ship repeater MD71HR
for compassesdigital

ship repeater
ship repeater
ship repeater
ship repeater
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Function
for compasses
Display
digital

Description

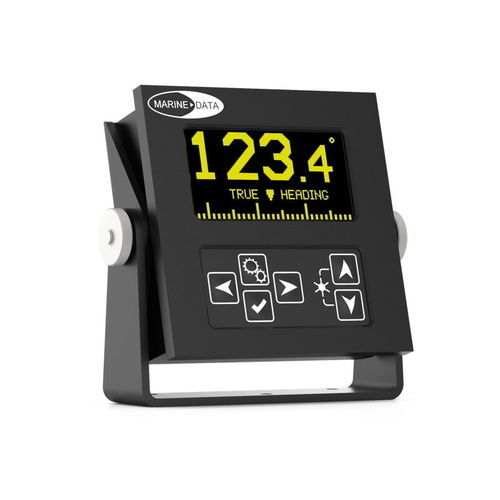

The MD71HR is a modular NMEA-based OLED Digital Heading Repeater, housed in a robust, compact aluminium enclosure with a multi-function keypad. The compact 1/4 DIN size makes it an ideal addition to any work boat, enabling digital heading data (ship’s heading) to be displayed and monitored at any location on a wide range of vessel types. Compact and rugged, the MD71HR offers a heading repeater solution for locations where space is limited and may be either panel mounted or flat surface mounted. Finished in Jet Black (RAL9005) Fine-texture Powder Coat to complement other marine navigation equipment. The MD71HR from Marine Data: flexible in application, easy to install and simple to maintain. FEATURES Compact Size OLED Display for Super Bright, High Contrast Display Six button membrane-type keypad Low Power Consumption NMEA 0183 Input Displays True or Magnetic Source Rugged, Marinised Construction Supports NMEA2000 / CAN Bus APPLICATIONS Repeats the display of a ship’s magnetic or gyro compass at any convenient location on a vessel Provides the heading display in an Electro-magnetic Compass System
