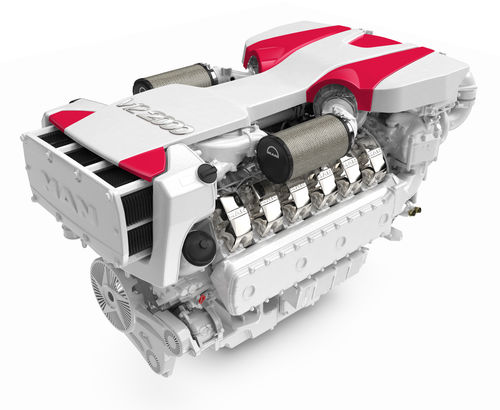

Inboard engine V12-2000
dieselboatingturbocharged

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
turbocharged, common-rail
Lubrication
full-flow oil filter
Pollution control standard
Tier 3
Other characteristics
4-stroke
Power

2,000 ch
(2,000 hp)

Displacement

24 l
(6 gal)

Number of cylinders

12 unit

Engine speed

2,300 rpm
(14,451 rad.min-1)

Consumption

396 l/h, 399 l/h
(105 us gal/h, 105 us gal/h)

Length

2,139 mm
(84 in)

Width

1,153 mm
(45 in)

Height

1,272 mm
(50 in)

Weight

2,420 kg
(5,335 lb)

Description

CUSTOMER BENEFITS High tractive power even at low speeds Powerful acceleration and rapid reaction to commands High performance combined with low weight Compact, space-saving design High efficiency owing to low fuel consumption Low running costs and long service life Low emission values World-wide service network with rapid supply of spare parts Characteristics Cylinders and arrangement: 12 cylinders in 90° V arrangement Operation mode: 4-stroke diesel engine, watercooled Turbocharging: Turbocharger with charge air intercooler and waste gate Number of valves: 4 valves per cylinder Fuel system: Common Rail direct fuel injection with electronic control Engine lubrication: Closed system with forced feeding, oil cooling and filtering Type of cooling: Plate heat exchanger, seawater cooled Engine control: Electronic injection control (EDC) Electronic engine monitoring including diagnostic unit Fuel: DIN EN 590
