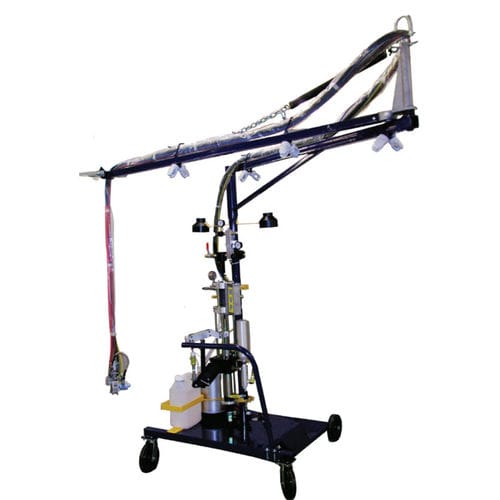

Resin spraying machine UltraMax
simultaneousfor shipyards

resin spraying machine
resin spraying machine
resin spraying machine
resin spraying machine
Add to favorites
Compare this product


Characteristics

Sprayed substance
resin
Type
simultaneous
Application domain
for shipyards

Description

The UltraMax chop system utilizes low pressures (15 – 30 psi) to makes quality parts with minimal overspray and material waste. Configurable with patented FIT® (Fluid Impingement Technology), the system is the best in class for emission controls. The system includes rapid access design (RAD) for easy maintenance and reliable performance. With no splashing or bounce-back and less air entrapment, the UltraMAX Chop system produces a stronger, more uniform laminate. STANDARD VOLUME Specifications: Output Capabilities: Up to 3-15 lbs./min.(1.36 – 6.80 kg/min.) Catalyst Percentage: 0.75% to 3% by volume Air Consumption: 8 CFM (0.23m3 Pump Ratio: 6:1 & 11:1 Maximum Air Input Pressure: 100psi Options: CFH-4000-B CFH-4000-AI (Air Initiate) CB-8000 Monitor CTS-9000 Catalyst Alarm HIGH VOLUME Specifications: Output Capabilities: (Automatic) (Resin) approx. 20-30 lbs./min. (9.07 – 13.6 kg/min); (Hand-Held) approx. 8-18 lbs/min (3.63-8.16) Catalyst Percentage: VHPC – 1000 0.5% to 1.25% VHPC 4200 .5% to 2.2% Air Consumption: (Resin) 18 CFM (0.4m) average; (Chopper) 10-20 CFM (0.3-0.6m) Pump Ratio: 6:1 & 12:1 Maximum Air Input Pressure: 100 psi Options: CFH-4000-B CFH-4000-AI (Air Initiate) CB-8000 Monitor CTS-9000 Catalyst Alarm

VIDEO
