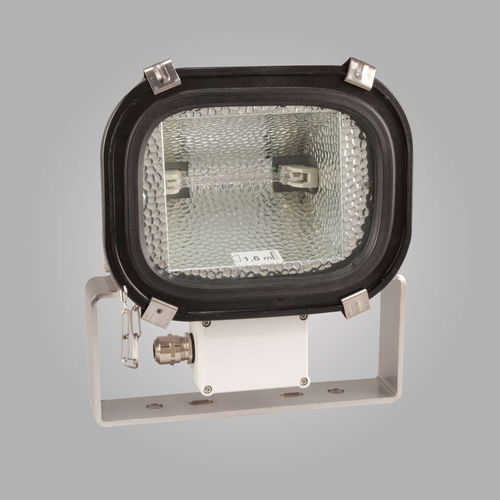

Deck floodlight / for ships / halogen
ST76 LightPartner Lichtsysteme


  • Type:


  • Application domain:

    for ships

  • Light source:


  • Power:

    200 W (0.27 hp)


Part no. 110-240 V 5101004400-004
24 V 5101004400-003
Design According to rules of maritime classification societies and relevant standards
Housing Stainless steel, 1.4404 (AISI 316L) seamless deep drawn, powder coated white (RAL9016)
Cover Tempered glass, DIN 12150
Mounting Stainless steel bracket, adjustable
Reflector Aluminium anodized, wide beam angle
Cable entry Junction box, cable gland M20, nickel plated brass
Wiring Flexible wiring, high temperature resistant
Protection class IP67
Weight 3.4 kg
Light source QT-DE lamp (not included)
Lamp base R7s
Wattage 1x 200 W
Voltage 110-240 V AC
24 V DC
Frequency 50-60 Hz
