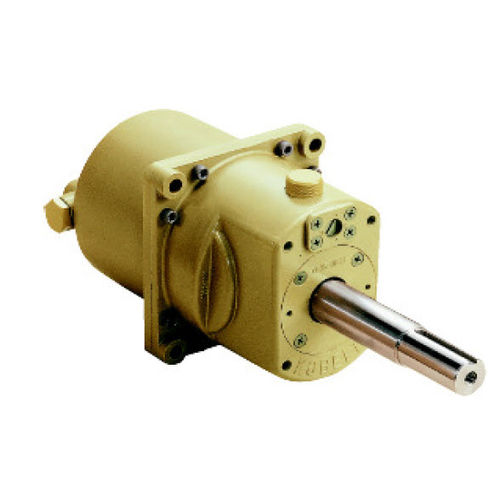

Boat steering 7005
hydraulic

boat steering
boat steering
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Operation
hydraulic

Description

This pump features adjustable volume in a compact design. Adjustment from 2-6 in³ per turn is easily accomplished from the outside. A ball bearing and two thrust bearings provide smooth operation and long life. A lock valve installed on the back of the helm pump prevents rudder feedback and also allows installation of multiple control stations. The pump is normally supplied in its die cast bronze finish. It can, however, be ordered in a black epoxy finish. Materials: Housing and rotor are die-cast silicon bronze. Pistons and pintol are hardened and ground steel. Pump shaft and hardware are stainless steel. Max. working pressure: 1000 psi (69 bar) Weight: 23 lbs. (10.4 kg) ORDERING INFORMATION A – With cast bronze finish (standard) B – With black epoxy finish L – With long shaft (for behind console mount) N – With short shaft (for through console mount) P – With porting block only (no lock valve) T – With tapered shaft V – With vent plug Note: An adaptor plate to simplify installation of the helm pump is available. It can be installed on either side of the console.

Catalogs
