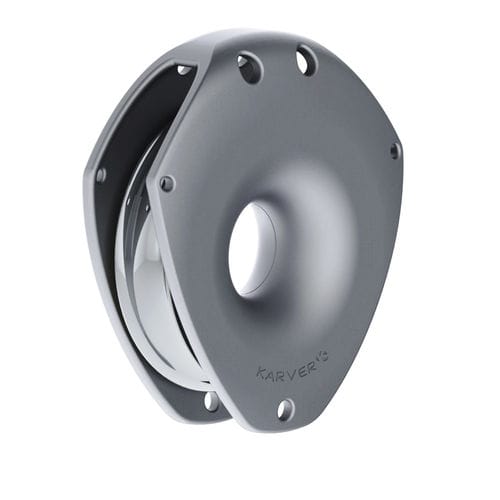

Single block KBRA80
high-resistancelashingroller bearing

single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
high-resistance
Configuration
lashing
Bearing type
roller bearing
Maximum line diameter
max. rope ø 18 mm
Application domain
for racing sailboats, for yachts
Material
aluminum, titanium
Working load

8 t
(8.8 us ton)

Breaking load

16 t
(17.6 us ton)

Thickness

70 mm
(3 in)

Center diameter

18 mm
(1 in)

Description

The KBRA80 is the aluminum version of our range of KBR blocks devoted to Racing and Super Yachts. It is a very low friction lashing block designed for larger loads. It is aboard the Ultims, Imocas, and many Super Yachts. Very few blocks on the market can display a coefficient of friction of 2% on very high loads. Titanium sheave, titanium rollers, ceramic side balls and painted carbon flanges. The KBRA is certainly the most efficient block on the market. Strengths – Used on many racing yachts & super yachts – The Aluminum version of the KBR is the original version before we extended it to carbon, carbon wood and stainless steel finishes. It is this version that was used for the backstays of the Volvo Ocean Race – The KBRA is also available in an opening version : KBR OP – Reliable and resistant even under very heavy load – Aluminum flanges machined in the mass – Titanium sheave for weight and resistance – Titanium roller bearing and lateral ceramic balls on treated titanium raceways (Karver patent) – Sheaves Compact tulips – Minimal friction even under very high load (2%) – Impressive longevity of the bearings (due to low friction) – Anti-rollover shape. The pulley remains straight whatever the direction of the efforts – Very generous central space to come and fix several lashings (low runners for example) – The lashing in the middle is also too big a guarantee of safety. If the pulley breaks (for external reasons of course!), The lashing will still retain the rope while the installation is secure. – A real design that stands out from other pulleys on the market – Range from 1.5 T to 40 T. – Also available with carbon (KBR C) or stainless steel (KBR M) flanges)
