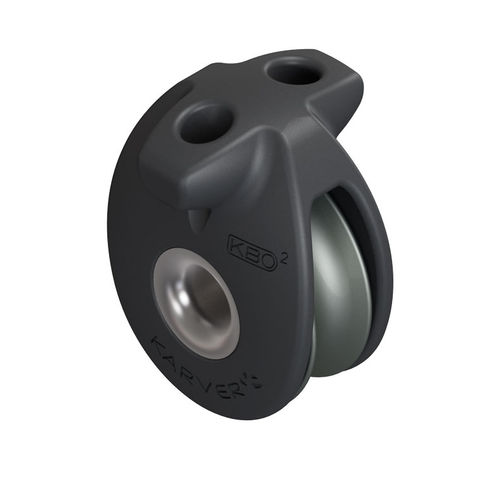

Plain bearing block / single / lashing / max. rope ø 8 mm
KBO2 Karver Systems

Characteristics

  • Type:

    plain bearing

  • Number of sheaves:

    single

  • Configuration:

    lashing

  • Maximum line diameter:

    max. rope ø 8 mm

  • Application domain:

    for sailboats

  • Working load:

    220 kg (485.02 lb)

  • Breaking load:

    440 kg (970.03 lb)

Description

KBO lashing blocks have the best size to weight ratio on the market.
KBO rope lashing makes fitting easier and quicker than standard shackles.

+FAST ATTACHMENT
- The rope shackle is included with the block up to KBO30.

+SIMPLICITY
- Easy fitting from the lashing guide and rope shackle attachment simplifies the use of the KBO block.
+LIGHTWEIGHT

- The design and material optimisation make the block extremely light.

+PERFORMANCE
- The KBO block features a two stage bearing system from the KBO8 to enhance low friction.
