ship toilet / vacuum / ceramic
50M Jets Vacuum

Add to MyNauticExpo favorites
ship toilet / vacuum / ceramic ship toilet / vacuum / ceramic - 50M
{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Operation:

    vacuum

  • Other characteristics:

    ceramic

Description

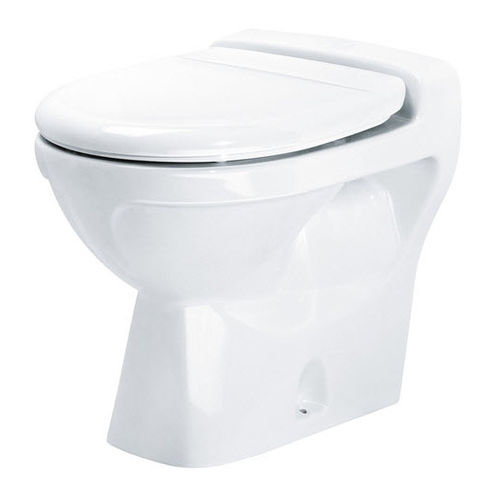

Jets™ 50M is a floor mounted vacuum toilet in a modern design. It can be supplied with a vacuum operated or electronically operated mechanism.

Low water consumption
Reliable operation
Detailed specs:
External dimensions*: 590 x 385 x 465 mm (L x W x H)
Bowl material: Vitreous china
Bowl net weight: 19,5 kg
Total weight: 24 kg
Water connection: BSP 1/2" male ball valve
Discharge outlet: 50 mm
* Allow for a deviation of +/- 2% in vitreous china products

Operating data:
Flushing time: adjustable (5 seconds)
Discharge time: adjustable (2 seconds)
Water pressure: 2-7 bar (200-700 kPa)
Operating vacuum: 30-55%
Water consumption: adjustable (1,2 litres)
Air consumption: adjustable (appr. 60 litres at 50% vacuum)
