Electric windlass SMART-V
for boatsverticalabove deck

electric windlass
electric windlass
Add to favorites
Compare this product


Characteristics

Operation
electric
Application domain
for boats
Mounting
vertical
Set-up
above deck
Number of drums
single-drum
Working load

90 kg, 100 kg
(198 lb, 220 lb)

Maximum pull

810 kg
(1,786 lb)

Engine power

500 W, 800 W
(1 hp, 1 hp)

Power supply

12 V, 24 V

Amperage

32 A, 45 A, 60 A, 90 A

Chain diameter

6 mm, 7 mm, 8 mm
(0 in, 0 in, 0 in)

Boat length

10 m
(32'09" )

Weight

9 kg, 10 kg
(20 lb, 22 lb)

Description

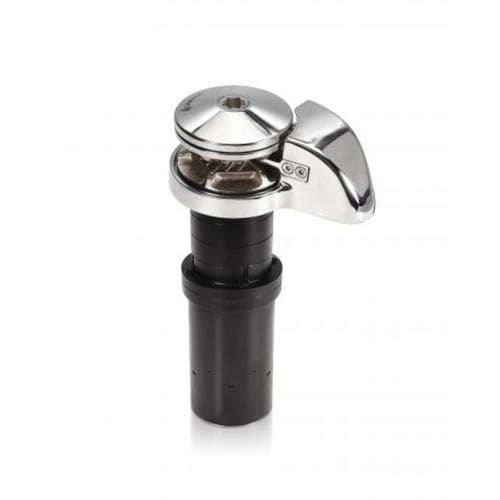

SMART-V is a stainless steel AISI 316 vertical windlass with planetary drive. Available in high or low profile, with different drives and recommended for boats up to 10m. SMART-V can use the 6 mm or 8 mm chains and is equipped with rope tensioner
