Manual windlass RAJA
electricfor yachtshorizontal

manual windlass
manual windlass
Add to favorites
Compare this product


Characteristics

Operation
electric, manual
Application domain
for yachts
Mounting
horizontal
Set-up
below deck
Number of drums
double-drum
Function
anchor with capstan
Working load

370 kg, 390 kg, 520 kg, 590 kg, 700 kg
(816 lb, 860 lb, 1,146 lb, 1,301 lb, 1,543 lb)

Maximum pull

3,200 kg
(7,055 lb)

Engine power

2,000 W, 2,200 W, 2,300 W, 2,700 W
(3 hp, 3 hp, 3 hp, 4 hp)

Power supply

12 V, 24 V, 230 V, 400 V

Amperage

70 A, 135 A, 190 A, 200 A

Chain diameter

10 mm, 12 mm, 13 mm, 14 mm, 16 mm
(0 in, 0 in, 1 in, 1 in, 1 in)

Boat length

26 m
(85'03" )

Weight

55 kg, 70 kg
(121 lb, 154 lb)

Description

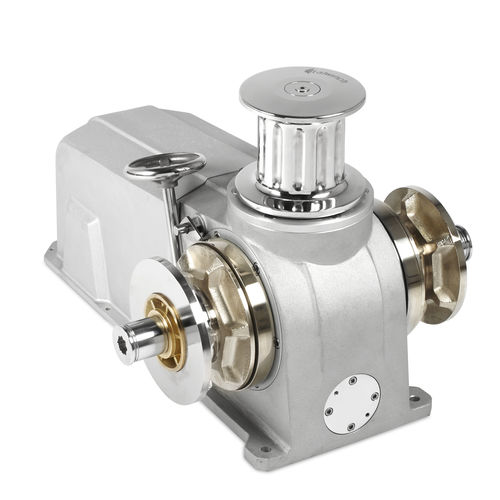

Horizontal axis winch white painted model. The RAJA can use chains from 10 mm to 14 mm in diameter. With different drives and recommended for boats up to 26m. Available versions: -1 gypsy - 1 horizontal drum -1 gypsy - 1 horizontal drum-1 vertical drum -2 gypsy - 1 vertical drum -Other versions on request
