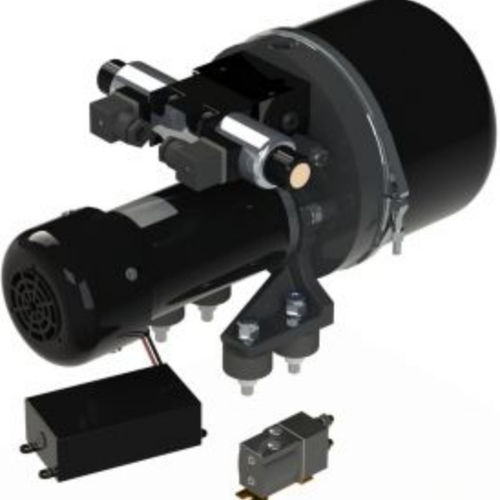

Professional vessel pump PC30
for autopilotsoilgear

professional vessel pump
professional vessel pump
professional vessel pump
Add to favorites
Compare this product


Characteristics

Application domain
professional vessel
Applications
for autopilots
Fluid
oil
Technology
gear
Operation
hydraulic
Flow rate

3 l/min, 4.5 l/min
(0.79 us gal/min, 1.19 us gal/min)

Description

The versatile PC constant running power units use a heavy-duty fan cooled motor driving a choice of 2 pumps giving outputs of up to either 3.0 or 4.5 L/min. For use in heavy duty applications on larger yachts or commercial craft these units come fitted with pressure compensated flow controls, relief valves and cylinder lock valves as standard. Developed specifically for marine autopilot applications in the commercial and larger pleasure boat market the PC pumps can be used with single or twin ram systems. The units are designed to be compatible with both balanced and unbalanced rams and pressurised reservoir type systems. Both versions are available in 12VDC and 24VDC. Note that they are not suitable for use in petrol driven vessels or in petrol tank spaces. These pumps are NOT suitable for installation in vessels with petrol engines or in petrol tank spaces. Voltage: 12 / 24 Vdc Pump output (variable): PC30 = 3.0 L/min PC45 = 4.5 lpm Ambient operating temperature: -15 to +55 deg C Motor voltage nominal: 12Vdc, 24Vdc Motor output watts: 405w, 440w Max continuous current: 24 amps, 12.5 amps Ingress protection: IP44 (Suitable only for ‘under-deck’, dry environment mounting.) EMC Protection: BS EN 60945:2002 (DC) Relief valve setting: 58 bar Orientation: Solenoid A energized Pump to A port, Solenoid B energized Pump to B port Coils: 31 watt Coil connection: DIN 43650 (6-8mm cable) Relay: 12 watt Relay rating: 80A Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV Capacity: 4 litres Tank pressure: 3.5 bar max Weight: 12 Kg
