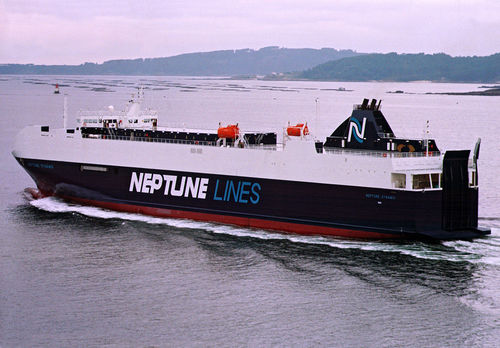

Ro-Ro cargo ship / car carrier
NEPTUNE DYNAMIS Hijos de J. Barreras

{{requestButtons}}

Characteristics

  • Type:

    Ro-Ro, car carrier

  • Length:

    158.5 m (520'00")

  • DWT:

    6,580,000 kg (14,506,417 lb)

Description

Main particulars:Length Overall: 158.50 m
Length between Perpendiculars: 145.00 m
Moulded Breadth: 24.40 m
Depth to Main Deck: 8.00 m
Depth to Upper Deck: 14.085 m
Design Draught: 6.00 m
Summer Draught: 6.40 m
Deadweight at Summer Draught: 6580 T
Classification:Det Norske Veritas: 1A1, GENERAL CARGO CARRIER, RO/RO, CAR CARRIER,
ICE-1C, E0, MCDK
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 7800 kW (2 x 10608 BHP) / Auxiliary Sets: 2 x 1020 kW at 900 rpm
Number of Propellers: 2 / Propeller Revolutions: 153.4 rpm
Bow Thruster: 2 transverse of 1.000 kW each electrically driven
Emergency Genset: 1182 kW at 1800 rpm
Cargo Capacity:Number of Cargo Decks: 5+2 car-decks
Cars and Trailers Simultaneously: Trailers Capacity: 87 / Cars Capacity: 470
Maximum Cars Capacity: Cars Capacity: 1500
Cargo Equipment:Stern Ramp-Door: 16.5 m length , 8.2 m width
Stern Quarter Ramp-Door: 18.7 m length , 5.2 m width
Hinged Ramp Cover: 21.5 m length, 3.6 m width
Hoistable Ramp: 48.5 m length, 3.8 m width
Fixed Ramp for Access from Deck No. 3 to Deck No. 2
Fixed Ramp for Access from Deck No. 2 to Deck No. 1
Hoistable Cardeck between Decks 3 and 5
Ramp to Hoistable Cardeck: 15.3 m length , 3.0 m width
Hoistable Cardeck between Decks 5 and 7
Ramp to Hoistable Cardeck: 15.3 m length, 3.0 m width
Hoistable Ramp: 23.0 m length, 3.0 m width
Tanks Capacity:Fuel-oil Capacity: 1096 m³ / Diesel-oil Capacity: 179 m³ / Lub. Oil Capacity: 76 m³
Drinking Fresh Water Capacity: 201 m³ / Distilled Water Capacity: 22 m³
Ballast Water Capacity: 2700 m³ / Anti-heeling Tanks Capacity: 295 m³
Sludge Tank Capacity: 40 m³
