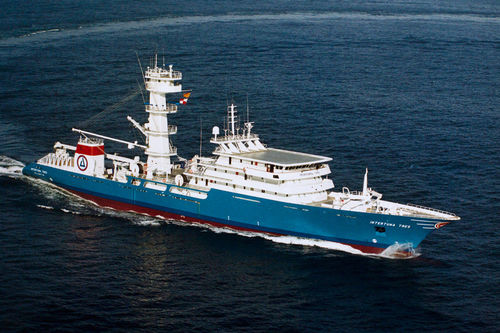

tuna seiner commercial fishing vessel
INTERTUNA TRES Hijos de J. Barreras

{{requestButtons}}

Characteristics

  • Type:

    tuna seiner

  • Length:

    115 m (377'03")

  • DWT:

    3,140,000 kg (6,922,515 lb)

Description

Main particulars:Length Overall: 115.00 m approx.
Length betw. Perpendiculars: 100.60 m
Moulded Beam: 16.60 m
Depth to Main Deck: 7.50 m
Depth to Upper Deck: 10.30 m
Mean Moulded Draught: 6.80 m
Summer Draught: 6.96 m
Deadweight: 3140 T
Trials Speed: 17 knots approx.
Crew: 31 people
Classification:Bureau Veritas: I 3/3 E Fishing vessel Deep Sea RMC Freezing
Propulsion & Manoeuvring Equipment:Main engine: 4412 kW (6.000 BHP) at 500 rpm
Generating Sets: 4 x 975 kW (1325 BHP) at 1000 rpm
Bow Thrusters: 1 transversal, fixed pitch, mechanically driven
by a diesel motor 975 kW at 1000/12000 rpm
Generating Sets: 215 kW (295 BHP) at 1500 rpm
Cargo Capacity:Freezing Tanks Capacity: 3250 m³ approx.
Daily Freezing Capacity: 140 T
Tanks Capacity:Gas-Oil capacity: 775 m³ approx.
Lubricating Oil capacity: 45 m³ approx.
Fresh water Capacity: 75 m³ approx.
Ballast Capacity: 138 m³ approx.
Stabilizing Tank Capacity: 160 m³ approx.
Hydraulic Oil Capacity: 12 m³ approx.
