passenger ferry

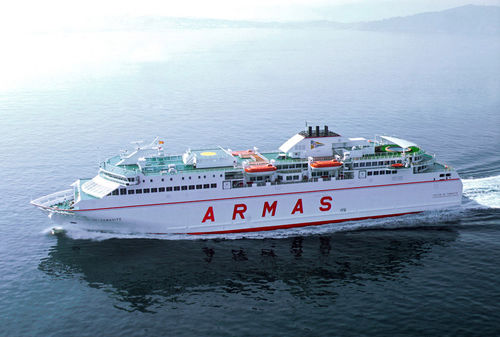

VOLCAN DE TAMASITE Hijos de J. Barreras

Add to MyNauticExpo favorites
passenger ferry passenger ferry - VOLCAN DE TAMASITE
{{requestButtons}}

Characteristics

  • Length:

    142.45 m (467'04")

  • DWT:

    3,400,000 kg (7,495,717 lb)

Description

Main particulars:Length Overall: 142.45 m
Length between Perpendiculars: 125.00 m
Moulded Breadth: 24.20 m
Depth to Deck No.3 (Main Deck): 8.35 m
Depth to Deck No.4 (Upper Deck): 13.55 m
Total Number of Decks: 8
Design Draught: 5.70 m
Summer Draught: 5.70 m
Deadweight at Summer Draught: 3400 T
Service Speed: 21 knots
Number of Superstructure Decks: 3
Classification:Bureau Veritas: I HULL MACH, RO-RO PASSENGER SHIP, UNRESTRICTED
NAVIGATION, INWATER SURVEY, AUT-UMS
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 8400 at 500 rpm
Generating Sets: 2 x 1100 kW at 1000 rpm
Emergency Genset: 1 x 270 kW at 1500 rpm
2 x CP Main Propellers, 4 Blades, 4200 mm Diameter
2 x 1000 kW CP, Bow Tunnel Thrusters
Cargo Capacity:2 Stern Ramp-Doors: 16.0 m x 8.0 m width
2 Fixed Ramps between Main Deck and Upper Deck: 38.0 m x 3.5 m width
1 Hoistable Cardeck betw. Upper Deck and Deck 6
2 Hoistable Ramps for Access to the Cardeck from Upper Deck Aft
2 Hoistable Ramps for Access to the Cardeck from Upper Deck Fore
Tanks Capacity:Fuel-oil Capacity: 621 m³
Diesel-oil Capacity: 92 m³
Lub. Oil Capacity: 45 m³
Fresh Water Capacity: 93 m³
Ballast Water Capacity: 1685 m³
