car ferry
VOLCAN DE TIMANFAYA Hijos de J. Barreras

Add to MyNauticExpo favorites

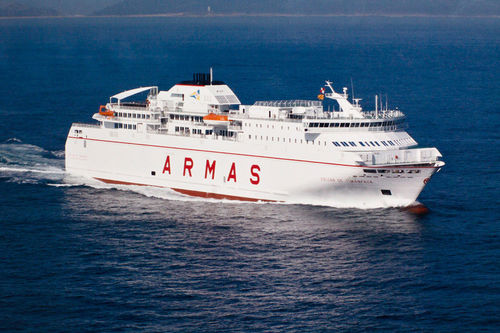

car ferry car ferry - VOLCAN DE TIMANFAYA
{{requestButtons}}

Characteristics

  • Length:

    142.45 m (467'04")

  • DWT:

    3,350 t (3,693 us ton)

  • Passenger capacity:

    1,000 unit

Description

Main particulars:Propelling Power: 2 x 8400 kW = 16800 kW
Generating Sets: 2 x 1100 kW at 1000 rpm
Number of Propellers: 2
Propeller Revolutions: 176 rpm
Emergency Genset: 1 x 270 kW at 1500 rpm
Bow Thrusters: 2 transverse variable pitch bow thrusters x 1000 kW each,
electrically driven
Cargo Capacity:Max. Capacity (Crew + Passengers): 1000 people
Cabins: 46x4 pax, 8x2 pax, 2x3 pax for disabled people
Number of Cargo Decks: 2 + 1 cardeck
Cargo Capacity with Cars and Trailers:
Lanes length of 2.10 m wide: 1970 m / Lanes length of 3.00 m wide: 600 m
Capacity for Cars: 404 / Capacity for Trailers: 33
Cargo Capacity Only with Trailers:
Lanes Length of 3.00 m wide: 1270 m / Trailers Capacity: 69
Cargo Equipment:2 Stern Ramp-Doors: 16.0 m length x 8.0 m width
2 Fixed Ramps: 38.0 m length x 3.5 m width
1 Hoistable Cardeck between Upper Deck and Deck 6
2 Hoistable Ramps for Access to the Cardeck from Upper Deck Aft
2 Hoistable Ramps for Access to the Cardeck from Upper Deck Fore
Tanks Capacity:Fuel-Oil Capacity: 621 m³ / Diesel-Oil Capacity : 92 m³ / Lub. Oil Capacity: 45 m³
Fresh Water Capacity: 93 m³ / Ballast Water Capacity: 1685 m³
Main particulars:Length Overall: 142.45 m
Length between Perpendiculars: 125.00 m
Moulded Breadth: 24.20 m
Depth to Deck No. 3 (Main Deck): 8.35 m
Depth to Deck No. 4 (Upper Deck): 13.55 m
Total Number of Decks: 8
Design Draught: 5.70 m
Scantling Draught: 6.00 m
Summer Draught: 5.70 m
Deadweight at Summer Draught: 3350 T
Service Speed: 22 knots
Number of Superstructure Decks: 3
Classification:Bureau Veritas: I HULL MACH, RO-RO PASSENGER SHIP, UNRESTRICTED
NAVIGATION, INWATER SURVEY, AUT-UMS
