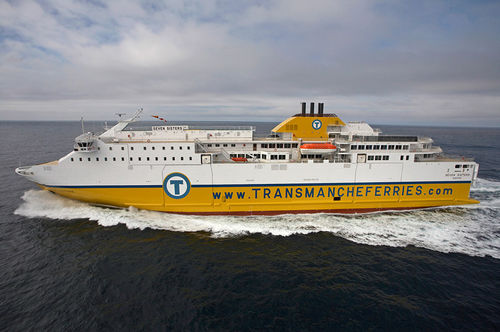

passenger ferry passenger ferry - SEVEN SISTERS
{{requestButtons}}

Characteristics

  • Length:

    142.63 m (467'11")

  • DWT:

    3,600,000 kg (7,936,641 lb)

Description

Propulsion & Manoeuvring Equipment:Main Engines: 2 x 9450 kW at 600 rpm
Generating Sets: 3 x 1100 kW at 1000 rpm
Emergency Genset: 1 x 270 kW at 1500 rpm
2 x CP Main Propellers, 4 Blades, 4200 mm Diameter
2 x 1300 kW CP Bow Tunnel Thrusters
Cargo Capacity:No. of Cabins: 49 x 4 pax cabins and 1 x 2 pax cabins for disabled people
Number of Cargo Decks: 2 + 1 cardeck
Cargo Capacity with Cars and Trailers: 127 Cars and 51 Trailers
Cargo Capacity Only with Trailers: 62 Trailers
Cargo Capacity with Maximum Number of Cars: 227 Cars and 31 Trailers
Cargo Equipment:2 Stern Ramp Door: 16 m length x 7 m width
2 fixed Ramps: 38 m length x 3.5 m width
1 Movable Cardeck for Vehicles Transport between Upper Deck and Deck No. 6
2 Movable Ramps for Access to Cardeck from Upper Deck aft: 24.7 m length x 4.7 m width
Tanks Capacity:Fuel-oil Capacity: 697 m³
Diesel-oil Capacity: 92 m³
Lub. Oil Capacity: 47 m³
Fresh Water Capacity: 107 m³
Ballast Water Capacity: 1515 m³
Main particulars:Length Overall: 142.63 m
Length between Perpendiculars: 125.00 m
Moulded Breadth: 24.20 m
Depth to Deck No. 3 (Main Deck): 8.35 m
Depth to Deck No. 4 (Upper Deck): 13.65 m
Total Number of Decks: 8
Design Draught: 5.70
Summer Draught: 5.90
Deadweight at Summer Draught: 3600 T
Service Speed: 22 knots
Number of Superstructure Decks: 3
Classification:Bureau Veritas: I HULL MACH, RO-RO PASSENGER SHIP, UNRESTRICTED
NAVIGATION, AUT-UMS, ALP, SDS, INWATER SURVEY
