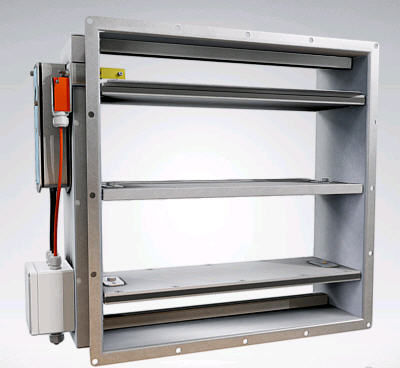

Ship fire damper FDL

Halton FDL fire dampers are type-approved classA0(A60) fire dampers for use in offshore, marine and navy ventilation systems. The FDL can be installed in rectangular or circular ducts. The FDL dampers are used to prevent the spread of fire within the ventilation ductwork. All fire dampers have a fusible link and spring return actuator. When the blades are in the open position, the device does not cause significant pressure loss or flow disturbance. Fire dampers are set from outside and can be installed in any position. An open-closed indicator is visible on the outside of the damper. Fire dampers with non-standard dimensions can also be supplied on request. Type-approved by most recognized classification societies: class A0 without insulation, A15-A60 when suitably insulated Available as ATEX approved. Shock-tested. Fixed frame and blades of painted, galvanized orstainless steel. Maintenance-free stainless steel bearings and shafts. Nominal fuse release temperature 50 ºC, 74 ºC or 100 ºC. Other temperatures available. Can be installed in any position Automatic electrical, pneumatic or spring operation system available Maximum duct pressure for damper construction 5000 Pa and maximum air velocity 15 m/s
