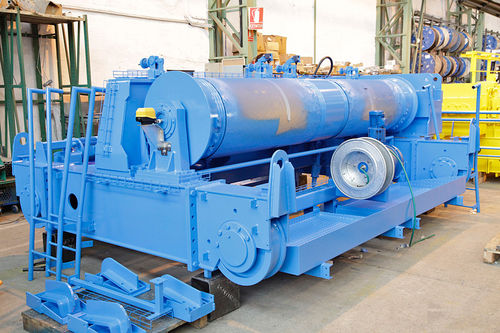

draw-wire hoist / electric / double-rail
130 T GH Cranes & Components

{{requestButtons}}

Characteristics

  • Type:

    draw-wire

  • Operation:

    electric

  • Other characteristics:

    double-rail

Description

An open winch type lifting has the following advantages:

- Increased lifting capacity and / or higher lifting speeds and / or higher FEM working groups.
- Use of commercial motors to fit customer"s standard. Possibility to use only 1 motor instead of 2 motors, thus halving the probability of having a break-down. Possibility of engines of 1,500 and 1,000 rpm. Increased motor size.
- Connections between motor and gearbox, and between gearbox and drum, are done with elastic couplings.
- True vertical lift as standard, thus avoiding lateral displacement of the hook during the lifting movement.
- Greater accessibility for maintenance of the different components.
- The brake is fully exterior, improving accessibility and regulation.
- The gearbox has a top opening lid, providing easy access for maintenance and inspection.
- Slack wire rope detector. Mechanical system to assure correct placement of wire rope in drum grooves and keeping only 1 layer.
