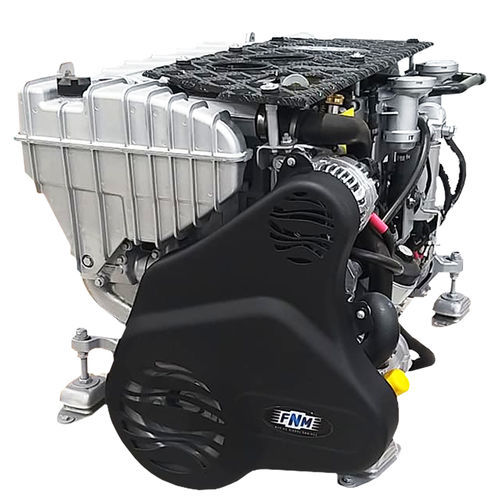

Inboard engine 42HPE series
dieselboatingcommon rail

inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
turbocharged, common rail
Engine type
in-line
Cooling system
water-cooled
Power

Min.: 150 ch
(150 hp)

Max.: 350 ch
(350 hp)

Displacement

4 l
(1 gal)

Number of cylinders

6 unit

Engine speed

3,800 rpm
(23,876 rad.min-1)

Bore

94 mm
(3.7 in)

Stroke

100 mm
(3.9 in)

Length

1,104 mm
(43 in)

Width

781 mm
(31 in)

Height

786 mm
(31 in)

Weight

460 kg
(1,014 lb)

Description

42HPE - INBOARD MARINE ENGINE Models: 42HPE 350 4 stroke turbocharged and aftercooled, direct injection diesel engine with electronically controlled common rail injection. Cooling controlled by separate fresh and salt water circuits, with extractable hoses for easy maintenance. Lube oil, water and air circuits designed to reduce external flexible pipes to a minimum to reduce loss of liquids in the bilge. Auxiliary devices driven by Poly-V belt to ensure excellent power transfer and long life. Electrical circuit protected by reactivatable valves. Standard equipment SAE flywheel housing Starter motor 12V Alternator 12V-110A Oil and fuel filters Air filter Freshwater engine cooling system with seawater heat exchanger Engine lubricating oil cooled by heat exchanger seawater cooled Freshwater cooled exhaust manifold and freshwater tubocharger Bronze seawater circulating pump with impeller in special rubber Centrifugal pump for freshwater circulation Drain oil pump Expansion tank integrated Stainless steel exhaust gas/seawater mixer Flexible mounts Electrical instrument panel with alarms 8m. panel cable extension White paint finisch Panel instrument CANBUS Panel Instrument high brightness 5 “TFT display, with touchscreen and a very simple and intuitive interface and offers the following features: - Engine data acquisition with CANBUS J1939 interface. - Data acquisition from traditional sensors for up to eight analog inputs, five digital inputs and one frequency input. - Acquisition of navigation data with NMEA0183 interface. - Up to five relay command outputs for signals and simple activations. - Alarm monitoring according to approved safety standards.
