Characteristics
- Network
- HF, SSB radio
- Application domain
- for boats, for ships, for yachts, for sailboats
- Type
- vertical, omnidirectional
- Other characteristics
- professional, self-supporting
Description

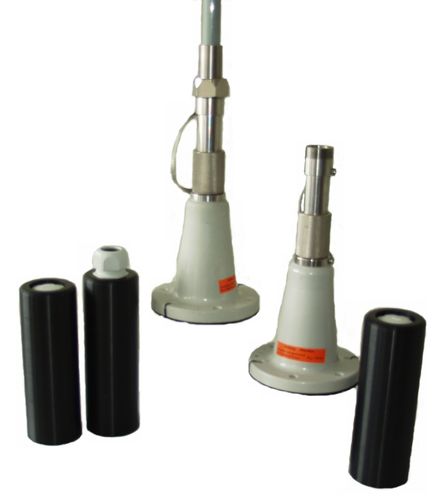

This rod antenna features a tilting device and is easily detachable (i.e. can be unscrewed at the base). At the same time, the STA 50 HV / K is rugged and ideally suited for maritime mobile services. It features the proven ELNA quality and reliability even in most demanding environments.
Construction: self-supporting rod antenna
Frequency range: 1.5 – 30 MHz (transmit) / 0.1 – 30 MHz (receive)
Polarization: vertical
Horizontal pattern: omnidirectional
Insulation resistance: > 10 MΩ
Operating temperature: -40° C … + 70° C
Relative humidity: 100 %
Length: 5100 mm ± 30 mm
Weight: c. 6 kg
Color: RAL 7035 (other colors on request)
Material: Antenna rod: glassfibre reinforced polyester resin)
Tilting base and fittings: Stainless steel (1.4571)
Wind speed: max. 200 km/h
