crane barge special vessel
Farrell 256 Donjon Marine

Add to MyNauticExpo favorites

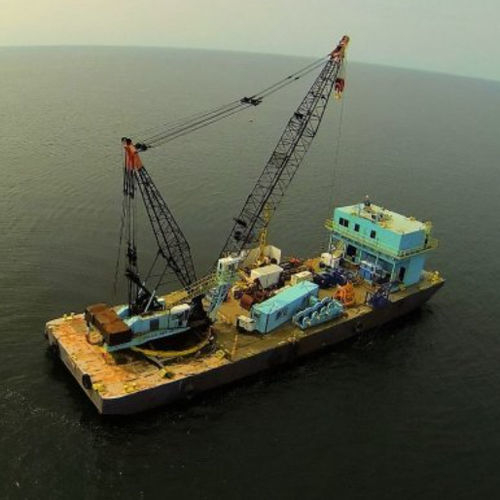

crane barge special vessel crane barge special vessel - Farrell 256
{{requestButtons}}

Characteristics

  • Type:

    crane barge

  • Length:

    200'00" (60.96 m)

Description

OFFICIAL NUMBER
523792

YEAR BUILT
Barge - 1969
Crane - 1978

BARGE
All welded steel construction, having one end raked (forward/towing end) and one end square.

LIFT CAPACITY

193.7 short tons at 62 radius over stern.

143 short tons at 64 radius fully revolving.

BOOM
120 long

HOUSE
(1) steel deckhouse fitted on bow deck containing machine shop, equipment room, generator room, office, and galley.

CLASSIFICATION
American Bureau of Shipping
International Load Line
National Cargo Bureau
Certificate of Test

TOWING GEAR
Main Towing Bridle
(2) 75’ long legs of 2" diameter wire rope and (9) links of 2¼" stud-link chain connected with 50 ton SWL safety shackles.

Emergency Towing Hawser
11" circumference by 600’ long with trailing line and buoy with quick release mechanism.

Mooring System
Winch:

(1) quad-drum winch
Anchors and Wires:

(4) 8,000 lb. anchors.

1,200’ long legs of 1¼" diameter wires.


DIMENSIONS
Length:
200’ 0"
Breadth:
56’ 0"
Depth:
14’ 0"
Tonnage (Gross):
1,369 GRT
Tonnage (Net):
1,369 NRT
Draft (Towing):
4’ 0" Forward
6’ 6" Aft
