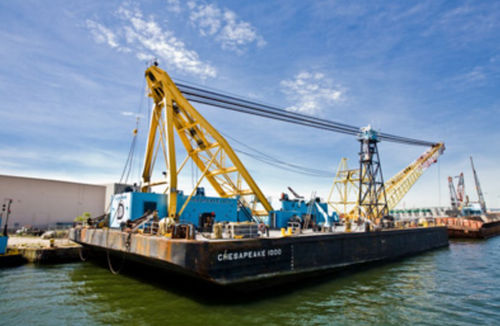

crane barge special vessel
Chesapeake 1000 Donjon Marine

{{requestButtons}}

Characteristics

  • Type:

    crane barge

  • Length:

    58.27 m (191'02")

Description

OFFICIAL NUMBER
554164

YEAR BUILT
1972

DERRICK
All welded steel construction, having one end raked (forward/towing end) and one end square.

LIFT CAPACITY
1,000 short tons at 63’ maximum radius fenders to hook.

BOOM
230’ 9" long plus 25’ long jib boom.

HOUSE
(2) steel deckhouses are fitted on deck with forward house containing hoist machinery and equipment and midship house containing the generator room, office, and galley.

TOWING GEAR
Main Towing Bridle:
(2) 75’ long legs of 2" diameter wire rope and (9) links of 2" stud-link chain connected with 50 ton SWL safety shackles.

Emergency Towing Hawser:
13" circumference by 600’ long with trailing line and buoy with quick release mechanism.

Emergency Anchor:
3,000 lb. steel anchor with 300’ of 1" diameter wire rope anchor cable with a quick release mechanism.

DIMENSIONS

Length:
191’ 2"
Breadth:
101’ 2"
Depth:
20’ 1"
Tonnage (Gross):
2,484 GRT
Tonnage (Net):
2,415 NRT
Draft (Towing):
8’ 0" Forward
9’ 0" Aft
