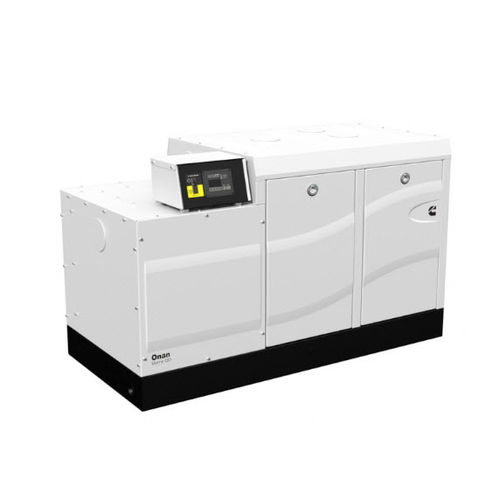

Diesel generator set MDDCW
for boats50 Hz60 Hz

diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for boats
Frequency
50 Hz, 60 Hz
Output power

40 kW, 65 kW
(54.4 hp, 88.4 hp)

Power in kVA

Max.: 81.25 kVA
(110.47 hp)

Min.: 40 kVA
(54.38 hp)

Voltage

Max.: 480 V

Min.: 110 V

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Length

1,738 mm
(68.4 in)

Width

840 mm
(33.1 in)

Height

1,039 mm
(40.9 in)

Net weight

1,098 kg, 1,167 kg
(2,421 lb, 2,573 lb)

Description

The Cummins Onan Digital Display provides user-friendly diagnostics including extensive engine and alternator information and more Largest worldwide certified Distributor/Dealer support network in the industry The optimized mounting system greatly reduces vibration Electronic frequency control - a must for digital appliances and computers requiring quality power More than 90 years of marine experience stand behind every Cummins Onan Marine generator set 4-cylinder, 4-stroke, water-cooled marine diesel with high pressure common rail fuel system Standard SAE J-1939 CAN data link for monitoring generator set status and diagnostics for engine and alternator
