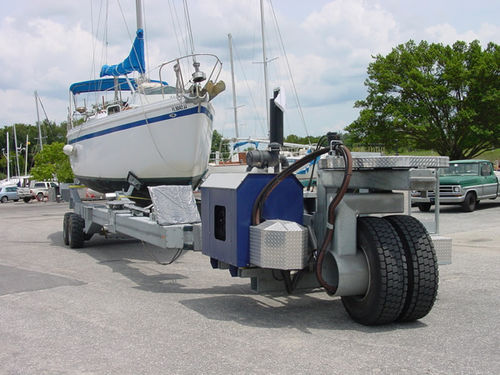

Handling trailer SP-30
for shipyardsself-propelled

handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyards
Other characteristics
self-propelled
Payload

60,000 lb
(27,215.54 kg)

Overall length

50'00" , 52'00"
(15.2 m, 15.8 m)

Overall width

84 in, 114 in

Lifting height

62 in

Description

12" x 12" x .375" HSS steel tube frame Integral hydraulic front-end power unit Power: 85 HP CAT Diesel 90 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 6 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 10 adjustable powerboat pads; 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: Front - 315/80-22.5" 20 ply drive tires / Rear - 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control "L" cradle arms for more efficient cradle moving - Set of 6 Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic 4-arm package for handling non-cradled sail boats Rear wheel drive assist Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
