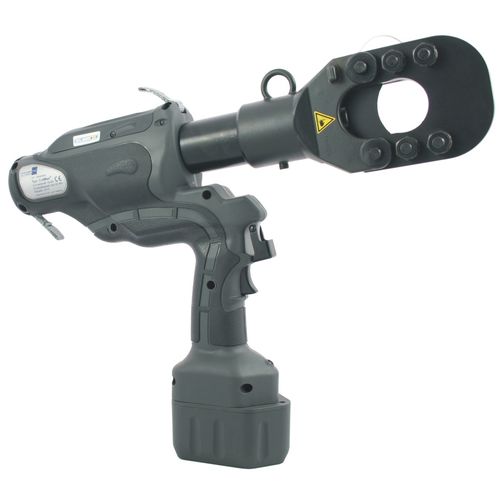

Shipyard cutting tool CutMax 4

The battery-operated hydraulic rope cutter CutMax 4 cuts round material with a diameter of up to 40 mm, e.g. overhead lines ACSR (Al/St) up to 450/40. The battery-operated hydraulic rope cutter is used in the areas of power supply companies and service providers, elevator and conveyor technology as well as in industrial applications. Battery Hydraulic Rope Cutter CutMax 4 - lightweiht, powerfull, for hard material Working with the rope cutter CutMax 4 is: Quicker: 30 % higher cutting speed. Easier: Tool weight is reduced by 8 %. More efficient: 10 % more cuts. Safer: non-slip housing and well-balanced design. More enduring: 10 % higher work life thanks to optimized construction. Brighter: Equipped with LED for lighting the working area. Interchangeable: Batteries, battery charger and power supply units still can be used. The battery-operated hydraulic rope cutter offers all features of the former model RS4, e.g. the rotatable cutting head, the two-step-hydraulic feed for quick cutting as well as optimized transmission of power thanks to guillotine principle to cut even hard material (e.g. ACSR). Technical specifications Cutting force: - 70 kN Opening width: - 42 mm Battery voltage: - 14.4 V Weight without battery: - 5.6 kg Dimensions L x W x H: - 460 x 80 x 292 mm Construction form: - Pistol Head: - closed Lock type: - bolt safety
