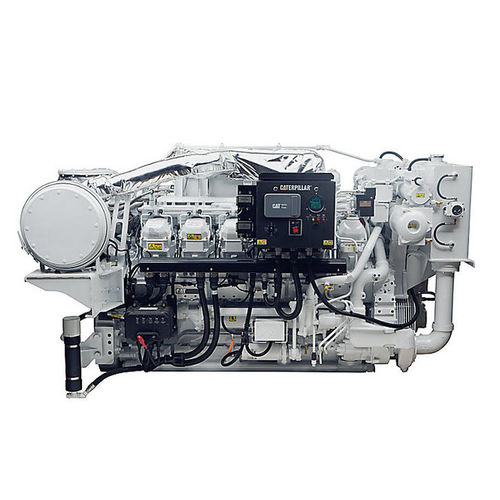

Inboard engine 3512C HDdieselboatingturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- boating
- Technology
- turbocharged, direct fuel injection
- Engine type
- V
- Rotation direction
- left hand
- Pollution control standard
- IMO 2
- Other characteristics
- 4-stroke
- Power
Min.: 1,340 kW
(1,821.9 hp)Max.: 2,366 kW
(3,216.9 hp)- Number of cylinders
12 unit
- Bore
170 mm
(6.7 in)- Stroke
215 mm
(8.5 in)- Length
2,645 mm
(104 in)- Width
2,037 mm
(80 in)- Height
2,223 mm
(88 in)- Weight
7,488 kg
(16,508 lb)
Description
The Cat 3512C marine propulsion engine makes your investment work harder. Through a wide range of available power ratings, no required aftertreatment technology, and nominal rated BSFC fuel consumption - it will drive down your total cost of ownership. With a redesigned piston bowl shape to improve combustion, and improved fuel delivery, this engine is IMO II emissions compliant and committed to sustainable environmental development. Single-source support, the Caterpillar warranty, and industry-leading one-year warranty on parts make the 3512C a fully integrated marine power solution
