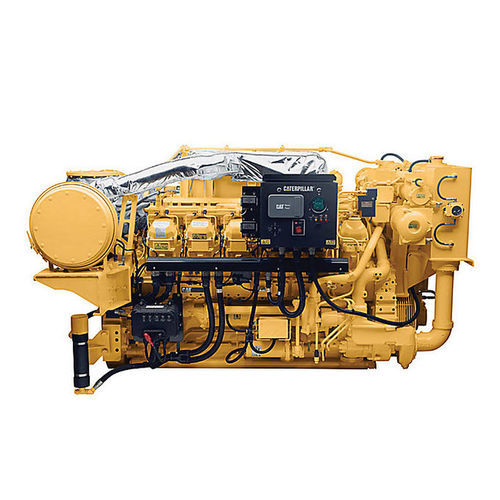

Inboard engine 3512C
propulsiondieselprofessional vessel

inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion
Power source
diesel
Market
professional vessel, for ships
Technology
turbocharged
Engine type
V
Pollution control standard
Tier 3, IMO 2
Other characteristics
4-stroke
Power

Max.: 2,551 ch
(2,551 hp)

Min.: 1,280 ch
(1,280 hp)

Displacement

52 l
(14 gal)

Number of cylinders

12 unit

Engine speed

1,200 rpm, 1,600 rpm, 1,800 rpm
(7,540 rad.min-1, 10,053 rad.min-1, 11,310 rad.min-1)

Bore

170 mm
(6.7 in)

Stroke

190 mm
(7.5 in)

Length

Max.: 2,669 mm
(105 in)

Min.: 2,590 mm
(102 in)

Width

Max.: 2,232 mm
(88 in)

Min.: 2,037 mm
(80 in)

Height

Max.: 2,242 mm
(88 in)

Min.: 1,904 mm
(75 in)

Weight

Max.: 7,411 kg
(16,338 lb)

Min.: 6,532 kg
(14,401 lb)

Description

The Cat 3512C marine propulsion engine makes your investment work harder. Through a wide range of available power ratings (including High Displacement ratings), no required aftertreatment technology, and nominal rated BSFC fuel consumption - it will drive down your total cost of ownership. With a redesigned piston bowl shape to improve combustion, and improved fuel delivery, this engine is IMO II emissions compliant and committed to sustainable environmental development. Single-source support, the Caterpillar warranty, and industry-leading one-year warranty on parts make the 3512C a fully integrated marine power solution.
