boat electrical circuit relay
AHD-R101 Böning Automationstechnologie GmbH & Co KG

{{requestButtons}}

Characteristics

  • Options:

    for boat electrical circuits

Description

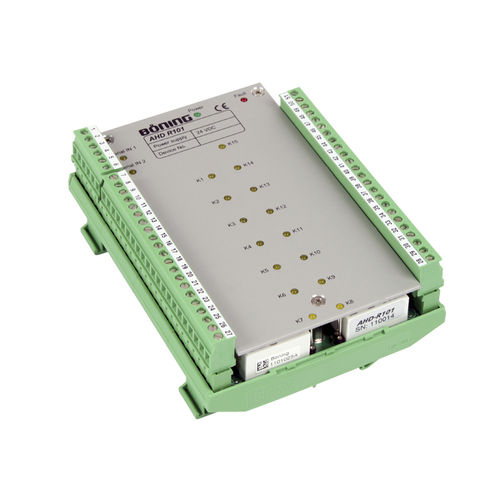

Relay Station, 15 Relays with Potential Free Changeover Contacts

The relay station AHD-R101 is a microprocessor-controlled device with 2 serial inputs and 15 relay outputs and is applied within alarm, monitoring and control system for output of control functions.
Product Features

Profile module for installation on standard profile rails in consoles, control panels or control cabinets
Degree of protection IP 10
Reduction of cabling demand by decentralized installation
Parallel output of serially transmitted control commands
Realization of measuring converters
2 serial inputs for data transmission of control commands from external devices (i.e. data station AHD-SAS 15, central unit AHD 882, binary data stations AHD-PS 15 /30 /47, etc.)
15 relay outputs with potential free change over contacts, 230VAC, 3A / 30VDC, 2A
LED-indicator per relay output, activated at engaged relay
Connection via pluggable terminal list
Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping and Bureau Veritas (further approvals on demand)
