search floodlight / for yachts / halogen / remote-controlled
HR1012 Böning Automationstechnologie GmbH & Co KG

{{requestButtons}}

Characteristics

  • Type:

    search

  • Application domain:

    for yachts

  • Light source:

    halogen

  • Other characteristics:

    remote-controlled, spreader mount

  • Power:

    55 W (0 hp)

Description

Search Light 24VDC for Searchlight Operating Panel AHD-SLP

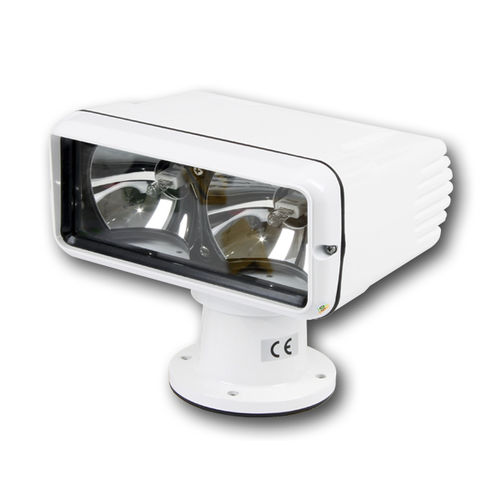

Sanshin searchlight HR1012 with 2 powerful halogen lamps and remote controllable positioning in horizontal and vertical axis.
Product Features

Robust aluminium die-cast casing, weight 3.25 kg
Degree of protection IP 56
Voltage inputs 12VDC for positioning control of searchlight
Voltage input 24VDC for power supply of searchlight lamp
2 x halogen lamp 55W with mirror
Projection up to 500m, spread horizontal approx. 7°, vertical 5°
Positioning with 360° endless rotation, vertical 9° upwards, 17° downwards
Positioning speed rotation 21°/s fast, 20°/s slow
Positioning speed vertical 2.8°/s
