ship multiplexer / for yachts / for digital sensors
AHD-SAS 15 Böning Automationstechnologie GmbH & Co KG

{{requestButtons}}

Characteristics

  • Options:

    for ships, for yachts, for digital sensors

Description

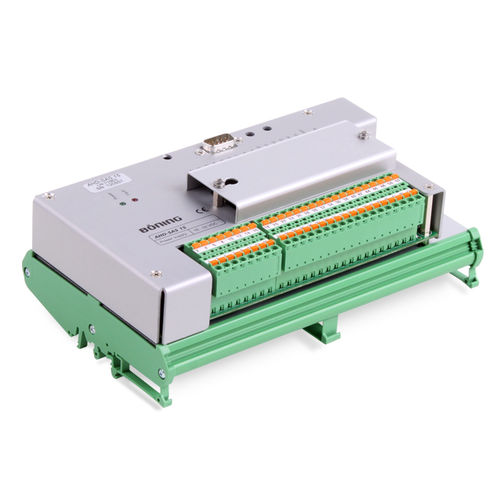

Data Station, 15 Inputs for Analog and Binary Sensors

The data station AHD-SAS 15 is applied within alarm, monitoring and control system for acquisition, processing and monitoring of all types of sensor measuring values.
Product Features

Available as profile module for installation on standard profile rails, or as module with basic plate for surface mounting in consoles, control panels or control cabinets
Degree of protection IP 20
15 input channels, individually equipped with pluggable analog modules, for acquisition of analog and binary signals (current, voltage, resistance, thermo couples, contacts, etc.)
High degree of flexibility by individual configuration of inputs and by decentralized installation with data communication via CAN-bus (incl. redundant operation)
Applicable as independently operated alarm and monitoring system
Further binary data station can be connected and monitored via serial interface
2 serial outputs for data transmission to external devices (i.e. relay station AHD-R101, central unit AHD 882, etc.)
1 horn relay output
1 common alarm relay output
2 freely configurable relay outputs
1 acknowledgement input for external alarm acknowledgement
Type approved by Germanischer Lloyd, Lloyd´s Register of Shipping and Bureau Veritas (further approvals on demand)
