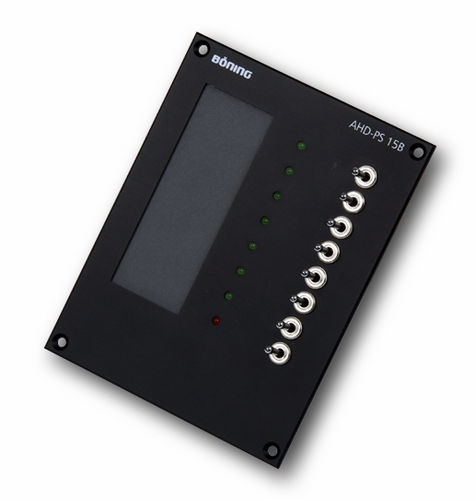

ship call panel / for engine rooms / for temporarily unmanned machinery
AHD-PS 15B Böning Automationstechnologie GmbH & Co KG

{{requestButtons}}

Characteristics

  • Options:

    for ships, for engine rooms, for temporarily unmanned machinery

Description

On Duty/Engineer Call Panel

The AHD-PS 15B is a monitoring and control device, which is used for selection of personnel on duty within Duty Alarm/Engineer Call System on board ships, which are classified for all or temporarily unmanned machinery rooms.
Product Features

Compact design for console, panel or switchbox installation
Front dimension100mm x 130mm, installation depth 55mm
Degree of protection IP 20
Selector switches, with appropriate single LED indication, for selection of “engine room manned/unmanned” and for up to 5 engineers on duty as well as engineer call
Input for external engineer call
Data communication with central unit AHD 882 via serial interface
Type approved by Germanischer Lloyd and Lloyd´s Register of Shipping (further approvals on demand)
