Control system BG-Link
for boatsfor charter boatsfor battery

control system
control system
control system
control system
control system
Add to favorites
Compare this product


Characteristics

Function
control system
Application domain
for boats
Type
for charter boats
Applications
for battery, for tank, bilge
Network
wireless
Other characteristics
alarm, connected

Description

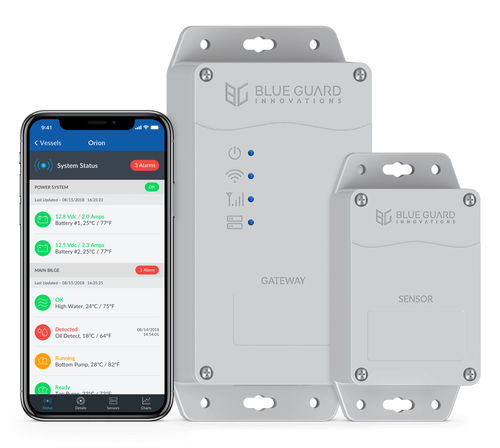

The BG-Link IoT Marine Gateway is a unique wireless monitoring system which primarily focuses on monitoring and alerting vital boat functions such as battery power systems and bilge functions through direct access to the internet cloud. Keeping the boat owner or designated user informed with 24/7 information about events taking place in the vessel’s bilge system. Regardless of the size of the vessel, it is easy to configure boat configuration including the name of the marina, dock and slip location to naming individual bilge, battery bank, down to all devices that are monitoring. Blue Guard Innovations Switches and Sensors (BG-SWA, BG-SW, BG-One, BG-HW, BG-Oil) communicate to the BG-GWM gateway via a 900 MHz wireless connection. The BG-GWM, is cable of monitoring of up to 50 individual sensors. It uses built-in WiFi connection to access the internet cloud or an optional cellular connection. It is housed in a rugged IP-66 rated ABS plastic enclosure with convenient mounting options. The BG-GWM features visible LED indicators for power, WiFi, cellular, and sensor connections. It is powered with voltage ranging from 9-30 Vdc. User configured alarms such as pump activation rate in an hour, voltage & current, temperature is then sent to designated e-mail or user BG-Link App. BG-SW-01,-02,-03 wireless sensors are compact, lightweight, and easy to install in small spaces.
