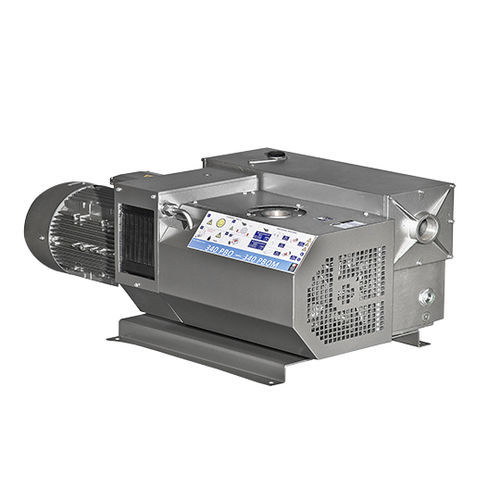

Ship vacuum pump 340 PBO
for shipyardswateroil

ship vacuum pump
ship vacuum pump
ship vacuum pump
Add to favorites
Compare this product


Characteristics

Application domain
for ships, for shipyards
Fluid
water, oil
Operation
electric
Voltage
12 V, 24 V
Protection level
ATEX
Flow rate

340 m³/h, 405 m³/h
(12,006.99 ft³/h, 14,302.44 ft³/h)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.5 bar
(7.3 psi)

Weight

175 kg
(385.8 lb)

Height

520 mm
(20 in)

Length

980 mm
(39 in)

Width

460 mm
(18 in)

Description

Cast iron pumping unit coupled to the electric motor via a flexible coupling. Aluminium oil/air separator eliminates oil mist discharge, suction check valve, air cooling. Accessories: Air filter, gas ballast valve, vacuum gauge, BGS TORR F100® non-toxic synthetic fluid Special voltages: available.
