Sailboat autopilot NAC-2
calculator

sailboat autopilot
sailboat autopilot
sailboat autopilot
sailboat autopilot
sailboat autopilot
sailboat autopilot
Add to favorites
Compare this product


Characteristics

Application domain
for sailboats
Type
calculator

Description

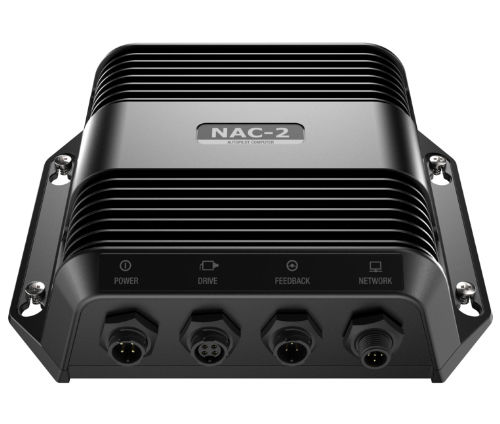

The NAC-2 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to ten metres (35 feet) in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (eight amps continuous/16 amps peak). Product details NAC-2 Autopilot Core Pack: Comprising of the low-current NAC-2 autopilot computer, Precision-9 compass and NMEA2000 backbone kit. Ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length. NAC-2 Autopilot Computer The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (16 Amps peak). B&G Reflex Sailing algorithms Plug and Play installation 12/24V input 8A continuous output, 12A peak Solenoid output capable 3A clutch output Optional Auto/Standby Switch

Catalogs

2019 Catalog
2019 Catalog
36 Pages
Catalog 2020
Catalog 2020
48 Pages
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
