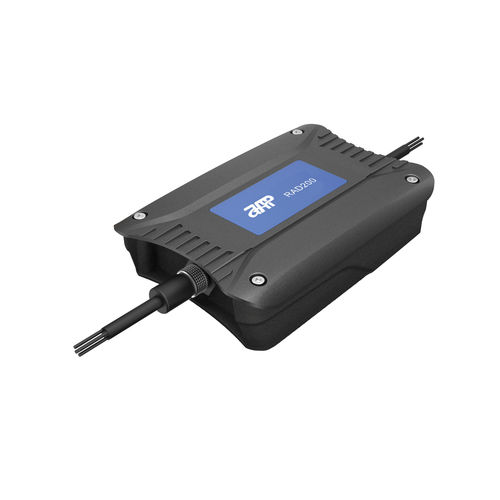

Rudder angle sensor RAD200(Rudder Angle Detector)

for boats

Product Introduction: The RAD200 Rudder Angle Detector collects the yachts' rudder angle information and then transmits it to a centralized monitoring device such as the MSP700 or MSP1500 via the NMEA 2000 CAN Bus . The RAD200 is used in conjunction with a rudder angle sensor to intuitively display the real-time position of rudder angle on the Marine Smart Monitoring & Supervisory Panel . By using the RAD200 alongside with analogue displays, the user can achieve a double assurance in ensuring a safe marine navigation. Application Field: Used for centralized collecting and management of navigation information on the yacht. Product Features: ● Support for NMEA 2000 communications protocol. ● Support for the standard 3-point calibration. ● Compatible with rudder angle/position sensors that have an electrical resistance range of 0 Ω – 300 Ω ● Attractive aluminum outer case, lightweight and easy to install.
