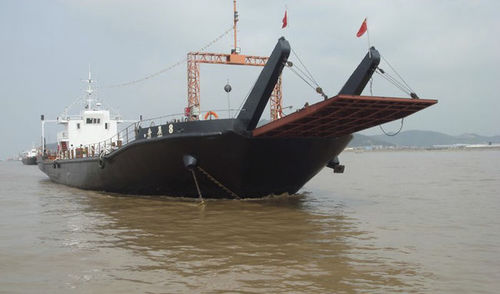

barge special vessel
Anhui Peida Ship Engineering

Add to MyNauticExpo favorites
barge special vessel barge special vessel
{{requestButtons}}

Characteristics

  • Type:

    barge

  • Length:

    87.76 m (287'11")

  • DWT:

    3,500 t (3,858 us ton)

Description

New building
Class
Navigation A1+A2
Loa/B/D 87.76 x16.80x4.30m
2576.8 DWT at 3.35m Daraft
Actual Load up to 3500t
GRT/NRT 1770X991 T
M/E 2 sets Chongqing Weichai6200,950BHP each 1900 bhp ttl
A/E 2 sets TD226B-6CD 99kw @ 1500 rpm /2set
Generators 75kw / 2 sets
Speed 10 knots
fixed CO2
side all and ramp has beel fixed
thickless:
Deck: 11 mm
Side, bottom. ramp: 12mm
Sidewall : 10mm
