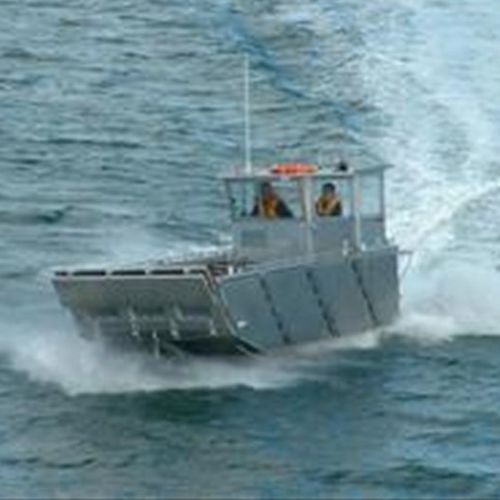

landing craft / outboard / aluminum
AMF Boat Company
7.5 m (24'07")
STANDARD HULL FEATURES
7.5 x 2.5M Aluminium fabricated hull All Aluminium to be 5083 high tensile marine grade 6mm bottom plating, 5mm side plating, 5mm treadplate wet deck, 5mm plate internal framing Twin heavy duty outboard bracket to transom Barge below decks compartmented and individually drain bunged. Winch mounting doubler plates as required Steering console aft with plastic wind shield 4 x tie down lugs in wet deck and aft as required Heavy duty bollards to fore and aft corners and four lifting eyes. Hinged fold down ramp to bow with hand winch operation, for loading and unloading of people or equipment and 2 x turn buckles to hold ramp up.
2 x Yamaha 70hp two stroke outboard engines with standard accessories only, including 24 litre tote tanks
Hydraulic steering with S/S wheel and tie bar
Navigation lights supplied & fitted ( 1 x port, 1 x stbd, 1 x all round white) 2 x start batteries fitted with AMF battery clamping system. BEP battery switches All wiring to be double insulated tinned copper
Bench seat unit aft with plastic seat fitted.
To supply 1 x hand bilge pump mounted aft in boat with flexible hose connected. To fabricate Alloy pickup pipes into hull compartments as required with Camlock type end fittings.
