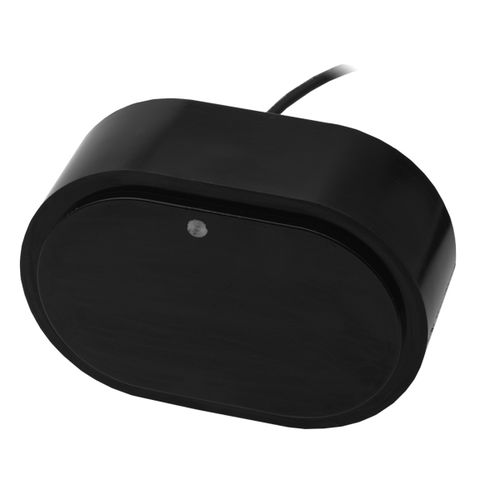

Depth transducer CM265LM
water temperatureacousticfor boats

depth transducer
depth transducer
depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth, water temperature, acoustic
Application domain
for boats
Applications
fishfinder
Other characteristics
ultrasonic, CHIRP

Description

The CM265LM Chirp-ready transducer is a perfect mid to deep-water depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse transducer delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths. The low-frequency band provides deep-water performance down to 900 m (3,000') and is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band is excellent for identifying targets suspended close to the bottom on structure and within the water column. Low frequency 42 to 65 kHz, Medium frequency 85 to 135 kHz Features: Depth and fast-response water-temperature sensor 1 kW power for excellent deep to mid-depth performance Low frequency: 42 to 65 kHz -25° to 16° port–starboard beamwidth -Maximum depth of 914 m (3,000') Medium frequency: 85 to 135 kHz -16° to 11° beamwidth -Maximum depth of 457 m (1,500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Urethane housing with Curved-edge Design for wet-box installation Also available as transom (TM265LM), pocket/keel (PM265LM), thru-hull (B265LM), in-hull (M265LM) mounts Exclusive Xducer ID® technology Specifications: Weight: 6.1 kg (13.4 lb.) Recommended Boat Length: 8 m (25') and above Hull Material: Fiberglass or wood Hull Deadrise: Accommodates any deadrise angle based on custom tank construction Acoustic Window: Urethane Transducer Element: Eight internal broadband ceramic assemblies
