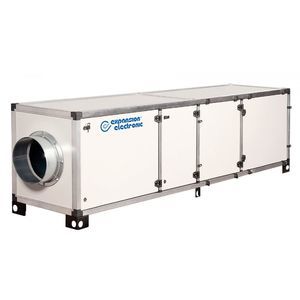

MARINE AIR HANDLING UNIT FEATURES
- Insulation thickness 2" or 4"
- Self supporting steel base, ready for deck installation
- Mixing section complete with opposed blade, fresh and return air dampers
- High or medium efficiency filters
- Direct expansion or chilled water cooling coils
- Electric, hot water or steam heating coils
- Electric control panel mounted on the unit complete with all necessary climatic and safety controls
- High performance centrifugal fan enclosed in the units fan section, resiliently mounted with safety screen
|
|
|
HI AIR KOREA air handling unit can establish SINGLE-PIPE AC System, TWIN-PIPE AC system and RE-HEAT AC System (electric reheater or hot water reheater) with the combination of different types of cabin units.
|
|
Climaster ZCP

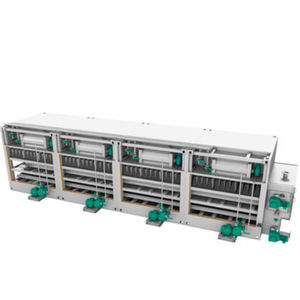

The Climaster ZCP air handling units are flexible and individually designed units primarily for the marine market and for some land applications. Common to all usage areas is the demand for a tough and robust unit capable of meeting very diverse requirements.
|
|
|
|
|
|
|
EUMM and EMAA are modern, high specification Air Handling Unit ranges with all of the functional sections needed to meet any air handling requirement.
The frame members and solid corner pieces form a sturdy framework.
EUMM is a modular unit offering flexibility of function, size and process while the EMAA is a compact unit based on the same design platform aimed specifically at the needs of the modern cruise liner.
That means we control quality and performance of the entire unit to ensure problem free installation and service.
Some of the main features of our Air handling units:
- Sturdy framework with box-section steel frame members.
- Solid composite material or aluminium, powder-coated corner pieces with no sharp edges.
- 50 mm thick double-skin, flush-fitting panels.
- Non-hygroscopic, rigid sheet, mineral wool insulation with a density of 50 kg/m3.
- Fully enclosed panels.
- Purpose designed coil connection seals.
- Fully dismountable casing.
- Multi-section blocks to reduce site assembly time.
- Corrosion resistant components designed for the maritime environment.
- Stainless steel casing available as a standard alternative.
- Painted casing available as an option.
- Taylor made marine functions.
|
|
|
|
|
|
|
FEATURES
Marine grade axial fans manufactured under license from Witt & Sohn are available for standard and high pressure applications.
Witt & Sohns well proven expertise has established this product as one of the leaders in Marine fan technology and associated noise and vibration control.
With a standar fan design as the starting point for a given application, using the latest CAD technology the Witt design team can rapidly incorporate any requisite design modifications from standard component elements to accommodate even the most exacting fan specification.
This means that such specification criteria (eg. severity of duty; space limitations; special materials and surface treatments) - can be incorporated efficiently and at considerably less cost and lead time than a conventional one off design approach
CONSTRUCTION
AXIAL - FLOW FANS
- Inlet Sizes - 250 to 2800 mm.
- Casing Thickness - 1,5 to 16 mm.
- Impeller Types - N, M, X, Y, H (adj. Pitch)
- Motor Frame Sizes - NEMA or IEC
- Drive Types - Direct, V-belt or coupling
- From Positions - See attached to Positions as requested
- Casing Designs - Short/long casing, swing out, w/wo shaped inlet
- Surface Treatment - Primer; finish; hot-dip galvanized, as required
- Materials - Corrosion resistant cast Impellers Aluminum
- Materials - Steel, aluminum, special Casings Alloys
- Special Designs - Flame-proof; shock-proof; high temperature, as required
|
|
In addition to their standard range of fans, COMBIMAC are well-equiped to manufacture custom-built fans and fan systems to suit individual customer's applications and requirements.
In order to meet these requirements COMBIMAC can offer fans manufactured from the following materials:
- cast iron
- cast aluminium
- aluminium
- stainless steel
- sheet steel
- non-ferro materials
- exotic materials
|
|
|
For direct installation in duct systems. Supplied with an impeler with adjustable pitch marine grade aluminum alloy blades direct coupled to a motor, and easy access for motor servicing. The fan housing & flanges in heavy plate.
|
|
|
For direct supply or exhaust at duct end, for instance, in engine rooms requiring a high rate of air changes.
|
|
|
For direct installation in duct systems. Supplied with an impeller with adjustable pitch marine grade aluminum alloy blades, direct coupled to a motor. The fan housing and flanges are in heavy plate in accordance with the requirement of international classification society.
|
|
ACN
The Novax ACN axial flow fans have pre-settable blades and are for duct installation and suitable for both conventional installations for marine and for industrial ventilating applications.
|
|
|
A full series is available, including axial flow internal types, axial flow external types, turbo types, and multi-blade types for marine use, offering a choice to meet diverse requirements. Impellers of axial flow fan type are aluminum cast, and all due consideration has been given to their use as fans for marine use in terms both of their casing thickness and the paint skin thickness. A rich array of models including the FA, LR, FAX, FD, TB, MF, and TF are available, depending on the method of installation, purpose of use, etc.
|
|
AXIAL-FLOW FANS
nlet sizes 250 to 2800 mm.
Casing thickness 1,5 to 16mm.
Impeller types N, M, X, Y (adj.pitch).
Motor frame sizes 63 to 400.
Drive types Direct, V-belt or coupling.
Positions A,AU,AD,B,BD,BU (Eurovent).
Casing designs Short/long casing, swing out, w/wo shaped inlet.
Surface treatment Primer; finish; hot-dip galvanised, as required.
Materials - Impellers Corrosion resistant cast aluminium.
Materials - Casings Steel, aluminium, special alloys.
Special designs Flame-proof; shock-proof; earth-quake proof; high temperature, as required.
|
|
Axial fan for low pressures, with direct drive
Surface: hot-dip galvanized or powder coated
Options: pully belt drive, ATEX, various accessories
Sizes:
VM 250 - VM 1600 (Ømm)
Application:
HVAC and refrigeration systems for machinery and accomodation rooms, short and long casings, thick metal casings up to 10mm, max. 80°C
Technical Data:
V = 1.000 - 200.000 m³/h
P = 100 - 1.400 Pa
L = 0.25 - 75 kW
|
|
Axial fan for high pressure with direct drive
Surface: hot-dip galvanized or powder coated
Options: pully belt drive, ATEX, various accessories
Sizes:
VH 310 - VH 1.250 (Ømm)
Application:
HVAC and refrigeration systems for machinery and accomodation rooms, short and long casings, thick metal casings up to 10mm, max. 80°C
Technical Data:
V = 1.000 - 150.000 m³/h
P = 300 - 2.500 Pa
L = 1 - 90 kW
|
|
Axial fan, high efficiency (-83%), blades adjustable when stationary, direct drive, medium pressure fan
Surface: hot-dip galvanized or powder coated
Options: pully belt drive, ATEX, various accessories
Sizes:
VML 500 - VML 2.000 (Ømm)
Application:
HVAC and refrigeration systems for machinery and accomodation rooms, short and long casings, thick metal casings up to 10mm, max. 80°C
Technical Data:
V = 1.000 - 450.000 m³/h
P = 100 - 2.800 Pa
L = 0,25 - 250 kW
|
|
GT Centrimaster belt driven
These single inlet, centrifugal fan series consists of centrifugal fans, belt driven, available with two types of impeller:
-Impeller with forward curved blades made of galvanized sheet steel.
- Impeller with backward-curved blades, made of sheet steel and welded, coated with epoxy powder. The fans are also available in a spark-proof version with the inlet cone made of brass.
|
|
FEATURES

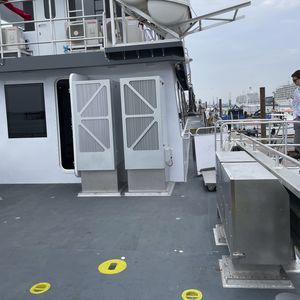

Marine grade intake and discharge terminals are weatherproof. Manufactured from heavy gauge steel, vents are closable, equipped with a hand wheel.
- Accepted by Lloyd Register of Shipping
- Heavy gauge steel construction
- Flange mounted or welded installation
- Wire mesh opening protection
- Weather resistant closing mechanism
- Built to meet requirements of Regulatory Bodies
- Available for any required capacity
- Primed and/or painted finish
- Easy cleaning access
|
|
|
|
|
|
|
FEATURES
Marine grade centrifugal fans manufactured under license from Witt & Sohn are available for standard and high pressure applications in various drive configurations.
Witt & Sohn well proven expertise has established this product as one of the leaders in Marine fan technology and associated noise and vibration control.
With a standard fan design as the starting point for a given application, using the latest CAD technology the Witt design team can rapidly incorporate any requisite design modifications from standard component elements to accommodate even the most exacting fan specification.
This means that such specification criteria (eg. severity of duty; space limitations; special materials and surface treatments) - can be incorporated efficiently and at considerably less cost and lead time than a conventional one off design approach.
CONSTRUCTION
AXIAL - FLOW FANS
- Inlet Sizes - 63 to 2500 mm.
- Casing Thickness - 1,5 to 20 mm.
- Casing Pressure Types - RNN & LRZ (Low Pressure) PRZ & MRZ (Medium Pressure) HRZ (High Pressure)
- Impeller Types - Min. 6 types per casing
- Motor Frame Sizes - NEMA or IEC Standard
- Drive Types - Direct, V-belt or coupling
- Materials - Steel, Aluminum, Stainless Steel, Titanium, Special Alloys
- Surface Treatment - As axial flow fan
- Outlet Positions -See Attached
- Special Designs -Flame-proof; shock-proof; extreme temperature; gas-tight; rubberized; decontaminable; corrosion resistant, as required
|
|
The standard COMBIMAC delivery program provides the following types of fans:
- cast iron fans
- steel welded fans
- steel welded high pressure fans
- material transportation fans
- indirect driven fans
- steel welded high pressure fans
- material handling fans
These different types of fans cover a wide range of different flow and pressure areas. Documentation on our standard fans can be found under the button Download.
To select a suitable fan meeting your requirements, our Fan Selection System for Windows (WinFSS) program could be of assistance to you. This program enables you to select a centrifugal fan from our standard range of fans under specific conditions.
If no suitable fan can be found by WinFSS, please contact us. We will then try to find an alternative solution in our extensive range of special fans.
|
|
Type TTF, turbo fan is available diameter from 280 mm to 1400 mm.
Backward curved blades are coupled directly or by v-belt.
|
|
|
Centrifugal fans types CNA and CNB are light-weight, compact, low pressure fans with high efficiency designed for universal installation. They are therefore well suited for marine or industrial ventilation and air conditioning system where economic operation and a low sound are important factors. The impeller is made of broad, backward curved blades.
|
|
CAL
For use in aggressive environments, this robust fan type delivers medium pressures. Air quantities can reach 20.8 m3/s, and pressures up to 8,500 Pa. Impeller diameters range from 630 to 1250 mm for directly coupled versions and from 315 to 1250 mm for belt-driven versions. Impeller blades are curved backwards.
|
|
CENTRIFUGAL FANS
nlet sizes 63 to 2500 mm.
Casing thickness 1,5 to 20 mm.
Casing pressure types RNN & LRZ (Low pressure). PRZ & MRZ (Medium pressure). HRZ (High pressure). SRZ (Ultra-high pressure).
Impeller types Min. 6 types per casing incl. dust impellers.
Motor frame sizes 63 to 450.
Drive types Direct, V-belt or coupling.
Materials Steel; aluminium; stainless steel; titanium; spec. alloys.
Surface treatment As axial flow fan.
Outlet positions To Eurovent.
Special designs Flame-proof; shock-proof; extreme temperature; gas-tight; rubberised; decontaminable; earth-quake proof; corrosion resistant, as required.
CCESSORIES
shaped inlets
fire dampers
protection grills
mushroom cowls
vibration attenuators
jet cowls
flexible connections
counter flanges
silencers
variable inlet vanes
inlet/outlet dampers
acoustic enclosures
insulations
monitoring instrumentation
|
|
Centrifugal fan for large air volumes and low to medium pressures.
Centrifugal fan VRQ-5E, direct drive (optional pulley belt drive)
Surface: hot-dip galvanized or powder coated
Options: pully belt drive, ATEX, various accessories
Sizes:
VRQ-5E 355 - 1.000 (Ømm)
Application:
HVAC and refrigeration systems for machinery and accomodation rooms, short and long casings, thick metal casings up to 10mm, max. 80°C
Technical Data:
V = 1.000 - 60.000 m³/h
P = 300 - 3.700 Pa
L = 0,55 - 45 kW
|
|
Centrifugal fan for large air volumes and low to medium pressures.
Centrifugal fan VRQ-12E, pulley belt drive
Surface: hot-dip galvanized or powder coated
Options: pully belt drive, ATEX, various accessories
Sizes:
VRQ-12E 250 - 1.000 (Ømm)
Application:
HVAC and refrigeration systems for machinery and accomodation rooms, short and long casings, thick metal casings up to 10mm, max. 80°C
Technical Data:
V = 1.000 - 70.000 m³/h
P = 100 - 3.700 Pa
L = 0,18 - 55 kW
|
|
Air cooled condensing units, special designed for marine application.
Mainly used for additional cooling systems for navigating bridges.
Innovative special developed KLH Refrigeration units.
Cooling capacity 5 - 20 KW (17000-68000 BTU/h).
|
|
|
The electric marine heater type HWG is used to heat washrooms, showers, dry areas and stores. Its slim, upright design make it specially suitable for installation in areas where space is limited.
|
|
Living quarters, bathrooms, stores and engine rooms
Wall mounting
Incorporated thermostat with on/ off switch
Safety temperature limiter
|
|
The electric marine heaters of the HU and UE series meet the requirements of all well known classification societies.
Depending on the locality there is a choice between the on-the-wall type HU and the recessed type UE.
|
|
Wall mounted or portable fan heater for marine and offshore applications.
Corrosion resistant housing of hot zinc-plated and powder coated steel panels.
Re-setable overheat protection.
Low noise fan.
|
|
|
|
