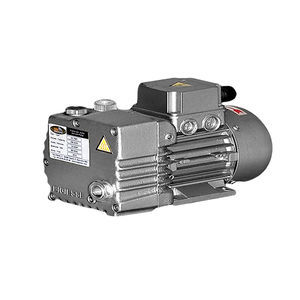

Simplicity of design with only one shaft and direct drive produces robust, long-lasting vacuum pumps with low maintenance and running costs. These vacuum pumps operate completely oil-free; the individual chambers are separated by long-life vanes. Already featuring integrated intake filters and control valves, these vacuum pumps can be fitted with other accessories without a problem. The compact cover ensures low noise and heat emission. Optional corrosion protection also makes these vacuum pumps suitable for extracting moist air.
|
|
|
Simplicity of design with only one shaft and direct drive produces robust, long-lasting vacuum pumps with low maintenance and running costs. The vanes are sealed by the metered supply of oil. Already equipped with integrated non-return valves and an efficient oil Separation system, these vacuum pumps can be fitted with other accessories without a problem. The standard-featured circulating-oil lubrication System with integrated oil cooler and cover additionally minimise noise emission. Controlled by a float valve, the oil return suction system also makes these vacuum pumps suitable for use in rough-vacuum applications. Optional water cooling significantly prolongs the life of the oil, even in difficult ambient conditions.
|
|
|
Driven directly by an integrated frequency inverter, these pumps no longer require any drive transmission. The area in which the units work is 100% oil-free. The integrated speed governor optimises the use of energy by matching delivery to actual demand. This creates high efficiency levels and minimises energy consumption. Suction air remains pulsation-free all of the time. Various accessories, such as intake filter, non-return valve, sound absorbers as well as the air delivery and discharge system, are integrated in the completely soundproof cover structure.
|
|
The VADS 1500 is a direct drive, air-cooled, rotary screw unit housed in a sound enclosure. Because it is directly driven, there are no gear boxes needed to control the rotational speed. Due to the variable frequency controller, the pump operates over a wide range of speeds. This allows you to operate today at the lower frequency, and at a higher frequency tomorrow when your plant gets expanded, or you add equipment. If your load varies, so does the speed of the pump to maintain the proper flow or pressure.
Dry operation
Direct drive - No drive transmission
Variable speed controlled
2.1 speed regulation
Sound enclosure standard
|
|
|
Using "multi-stage" compression, side channel vacuum pumps generate low-pulsation suction air. Perfected impeller design with curved blades guarantees Optimum efficiency. Separation of the compression chambers on both sides of the impeller permits single-stage, twin-flow as well as two-stage, single-flow operation with only one impeller. Vacuum filter and vacuum safety valve can be integrated as an optional extra in the patented design of the sound absorbers. The sound absorbers can be varied in length, affording flexible adjustment to available installation space.
|
|
Composite small-component manufacturing processes such as resin infusion and vacuum bagging.
This starter kit comes complete with an industrial vacuum pump, pump isolation valve, vacuum indicator gauge, in-line disposable filter and 5m of vacuum tubing.
|
|
Performance:
Max Volume:
50 GPM / 189 LPM
Suction Lift:
25ft / 7.6m / 23Hg
Discharge Head:
23ft / 7m / 10psi
Max Solids Size:
1.5" Dia.
Features:
Frame Size:
48"x15"x4" Extruded Aluminum
Durability:
Stainless Steel Transfer Cell - Powder Coated Aluminum Frame Frame-Oil Protected Air Pump.
Safety:
24V Push Button Controls with Shut Off Timer Included
Convenience:
Clean Out Access Cover, Clear Check Valves, Easy Access Control Panel
|
|
|
The sound insulation of our hoods is approx. 10-18 db(A). For better ventilation, our hoods are equipped with additional fans (1~ 230 V). These hoods are available as complete units including vacuum pumps (compressors) or equipped for retrofitting of your existing vacuum pumps (compressors).
|
|
|
VADS is the first direct-drive dry-running screw. With integrated speed controlling for demand-oriented applications and no need for a drive transmission, VADS is truly a Becker innovation! This unit is able to fulfil the highest requirements for a wide range of applications. By entering the load and output into your customer system, the air supply system automatically and directly adapts to the given requirements. The frequency-controlled drive unit offers a wide control range with optimised demand matching. In addition to energy savings and higher efficiency, this also results in lower maintenance requirements. The non-contact, oil-free screw unit ensures high air flows with low pulsation and lends itself to "master/slave" operation. Integrated accessories include a non-return valve, intake filter, sound absorbers and ventilation/bleed system. An air blast cooler is also available.
|
|
| ... products without information |
| |
- Self-priming to a lift of six feet
- Flow rate to 6-1/2 gallons per minute
- Rated for continuous duty cycles of up to 1/2 hour ofuninterrupted pumping time (nearly 200 gallons ofsewerage transfer per cycle)
- Motor meets USCG regulation 183.410 and ISO 8846MARINE for ignition protection
- Motor is EMC compliant and CE marked
- Ports accept 1-1/2" hose with room for double bandclamps
- All pump components (non-flexible) are non-corrosiveplastic, stainless steel and bronze
- Diaphragm is made of Santoprene and the valves aremade of nitrile
- Pump housing is made of glass filled nylon
- The motor and gear drive are painted with a durableprotective coating
- A plastic motor splash guard adds additional protection
|
|
|
SANISPLIT is an automatic soil and waste water pumping unit, which collects the water from the kitchen and bathroom and pumps it into the collection tanks, even without the necessary gradient. SANISPLIT includes a powerful and silent centrifugal pump controlled by a pressure switch, which starts the pump as soon as the water arrives in the unit's collection tank.
|
|
- Self-priming to a lift of six feet
- Flow rate to 6-1/2 gallons per minute
- Rated for continuous duty cycles of up to 1/2 hour ofuninterrupted pumping time (nearly 200 gallons ofsewerage transfer per cycle)
- Motor meets USCG regulation 183.410 and ISO 8846MARINE for ignition protection
- Motor is EMC compliant and CE marked
- Ports accept 1-1/2" hose with room for double bandclamps
- All pump components (non-flexible) are non-corrosiveplastic, stainless steel and bronze
- Diaphragm is made of Santoprene and the valves aremade of nitrile
- Pump housing is made of glass filled nylon
- The motor and gear drive are painted with a durableprotective coating
- A plastic motor splash guard adds additional protection
|
|
|
SANISPLIT is an automatic soil and waste water pumping unit, which collects the water from the kitchen and bathroom and pumps it into the collection tanks, even without the necessary gradient. SANISPLIT includes a powerful and silent centrifugal pump controlled by a pressure switch, which starts the pump as soon as the water arrives in the unit's collection tank.
|
|
Evac OnlineFlex
The Evac OnlineFlex pump family is a combination of proven "old" and innovative "new" technologies in a compact package. With the eight different OnlineFlex configurations we can secure a safe vacuum creation.
The OnlineFlex pumps are designed to create and maintain constant vacuum in a vacuum toilet in a vacuum toilet system with robust mechanical components. Intermediate tanks are not needed. The Flex family is a second generation range of Evac Online vacuum units for ships. The concept was specially designed to increase the installation flexibility without compromises.
Advantages:
-Flexible installation and operation
- Robust "plug and play" design
- Small footprint
-Silent
- Evac Speed Boots models with soft start
|
|
|
The sound insulation of our hoods is approx. 10-18 db(A). For better ventilation, our hoods are equipped with additional fans (1~ 230 V). These hoods are available as complete units including vacuum pumps (compressors) or equipped for retrofitting of your existing vacuum pumps (compressors).
|
|
|
|
