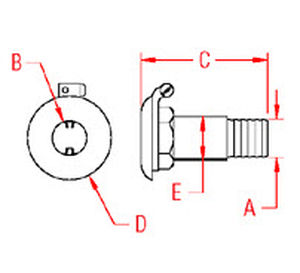

THRU-HULL Code 904 -15 , A 22 mm, B 15 mm , C 75 mm , D 43 mm , E 39 mm Code 904 -18, A 25 mm, B 18 mm, C 83 mm, D 51 mm, E 43 mm Code 904 -25, A 33 mm, B 25 mm, C 84 mm, D 54 mm, E 40 mm
Code 2959 -WHITE A 22,67 mm B 30 mm C 100 mm D 39,5 mm E 70 mm F 24 mm
THRU-HULL CONNECTOR IN ABS Code 769-38 A 38 mm B 40 mm C 120 mm D 36 mm E 74 mm F 55 mm
BRASS THRU-HULL Code 924 -01 , A 15.3 mm, B 20.5 mm, C 64.7 mm, D 40 mm Code 924 -02 , A 19.2 mm, B 26.2 mm, C 69 mm, D 48 mm Code 924 -03 , A 27 mm, B 33 mm, C 75.4 mm, D 54 mm Code 924 -04 , A 33.7 mm, B 41.5 mm, C 84.5 ...
Code 2951 -WHITE A 25 mm B 33 mm C 62 mm D 39 mm
Polish your image with these beautiful, durable stainless steel fittings. Each Thru-Hull and Scupper Valve is available with a new silicone gasket and are backed by Attwood's trusted Lifetime Warranty! Why specify plastic parts when these ...
Each Thru-Hull and Scupper Valve is available with a new silicone gasket and are backed by Attwood's trusted Lifetime Warranty! Why specify plastic parts when these fittings will last the life of the boat? Rugged Stainless Construction ...
Stainless Steel Narrow Flange Thru-Hulls Consistent exterior appearance throughout a range of barb sizes Modern Styling Enhanced 316 stainless steel, guaranteed from life Extreme Corrosion Resistance As with all Attwoods ...
The rubber flapper opens to drain water out and closes to prevent backwash. Acetal construction. For 1-1/2" I.D. hose. Caution: Thru-Hull connectors are designed for installation above the water line only.
The line taps are valves located below the waterline in order to open or close the flow of water to the different services of the boat: engine cooling, sinks, toilets, etc. Also known as shell. Solé Diesel cooling sea water intake for ...
Thru-hull overboard discharge for sea water circuit, available in three sizes 1/2", 3/4", 1". RELATED ACCESSORIES - PVC sea water pipe cod. CMTS

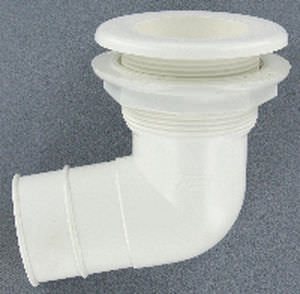

Elbow thru-hulls are the answer to the most common plumbing issues: Allow major room saving, as they can be used with a hose running along the hull Avoid making a bend in the hose, which can sometimes be a source of leak or breakage Require ...
Thru-Hull Ø68mm w/Non-return Valve, L.107mm, Black
Classic EVO multipurpose hose connector/water hook-up for washdown and multiple purposes It connects the onboard fresh water system or to the washdown salt water pump and it keeps the line under pressure. The washing hose plugs in onto ...
When using the mains water supply, pressure can be reduced up to 3 bar to prevent damage to the pipes. The hose plugs in using a garden-hose adaptor (see code 36.189.02). 3/4" thread male outlet.
Cast Bronze Flange is machined to fit hull and grooved to retain bedding compound Neck is threaded to approximately 3/8 inch from flange
- Molded White Polymer - Recessed Soft Black Flapper Designed for Surface Thickness from 2 inches to 4-3/4 inches. Female portion of scupper can be cut down by one rib for each 1/4 inch difference between hull thickness and 4-3/4 inches.
The Forespar® outboard motor well drain offers a corrosion proof, easy-to-install replacement for the old fashioned buttress fitting. Can also be used as as a chafe guard to lead hose, wiring, steering cables, etc. through bulkheads, ...
For newer transoms, Forespar® designed a drain & plug assembly to fit up to 1-3/4" (44.45mm) thick transoms. Our Marelon® female 3/4" (19.05mm) elbows or female threaded barbed hose fitting can be screwed onto the end for hose attachments ...
NPSM thread C83600 Bronze (4" and 5" sizes are C84400 bronze) Sizes from 1/2" to 5" UL Listed 647B Available with or without nut BSPP and Stainless Steel models available

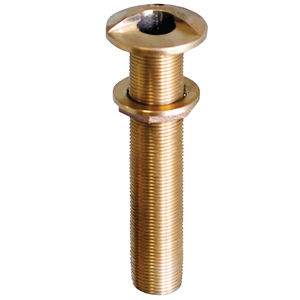

Extra long NPSM thread for thick hull sections C83600 Bronze Sizes from 3/4" to 2" Available with or without nut Stainless Steel models available
Description Boat through-hull fitting,a new through-hull fitting necessitates a new hole in the hull. ... The seacock and the through-hull fitting must always be the same material. ... YCH deck & cabin hardware products are mainly made ...
Tru-Design range of Skin Fittings are the first composite through hull fitting to be certified by the International Marine Certification Institute (IMCI) Belgium. Designed and made in New Zealand, the Skin Fitting body and nut are moulded ...
Designed and made in New Zealand, the Recessed Skin Fitting body and nut are moulded from glass fibre reinforced nylon composite. High strength, high-modulus glass fibres provide dramatic strength, stiffness, toughness and dimensional ...
Fits stainless steel all-thread thru hull fittings and drain grates. Available in four different sizes, see product description for drawing with measurements.
Nylon adapter, 90° bend Drain grate and barb adapter combination. M7-16-9005301 A=16mm B=15mm C=36mm D=42mm M7-16-9005303 A=25mm B=15mm C=36mm D=42mm M7-16-9005306 A=39mm B=18mm C=50mm D=70mm
The Thru-Hull Hose Connect set includes thru-hull, washer with grounding lug and nut. This hose connect is precision cast and made from grade 316 stainless steel for maximum corrosion resistance and durability, making them perfect for ...
Hull transom nut Hull transom nut made in bronze CQL / 90-10.
Molded of high-strength U.V stabilized nylon for extreme toughness and freedom from corrosion and electrolysis. . 3/4" I.D. Hose . Maximum Wall Thickness: 15/16" . Nut Diameter: 1-7/16" . Installation Hole Diameter: 7/8"
. Serrated snap fit installation . High-strength polypropylene construction . Maximum Wall Thickness: 2-1/4" . Installation Hole Diameter: 1"
How to choose this product
A through-hull fitting is a metal or plastic device composed of a threaded tube and washers. It connects pump hoses, outlets, sensors or other instruments or machinery within the hull to the exterior. It can be situated below or above the waterline.
Such fittings link devices within the hull to the exterior. This includes various hoses, depth or log sensors and underwater lights. They are found aboard recreational sail- and powerboats, regardless of construction material.
A threaded tube and flat washer are inserted into a hole in the hull. A threaded washer is screwed onto the tube and tightened against the hull, fastening the device in place. Polyurethane sealants ensure watertightness.
The threaded tube is usually equipped with reducers and ribbed nozzles for pump or outlet hoses. In some cases, the fitting holds an electronic depth or speed sensor, or an underwater light. Fittings for seawater engine cooling pumps often have strainers to filter out foreign objects. Whether stainless steel, aluminum or plastic there is a wide selection of diameters.
How to choose
To avoid electrolysis, the fitting material must be compatible with that of the hull. Avoid using a stainless steel fitting on an aluminum hull, for example.
