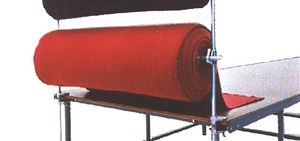

The A-Frame manual feeder is an economical solution for trouble free spreading of different fabrics. Fully portable with a total weight capacity of 1,000 lbs. (453.6 kg) per side.
|
|
STORAGE - UNROLLER FOR ROLLS ref: 514/8/10
Model with 8 or 10 bars
Strong frame conceived for 10 rolls of 35kg and 350mm of diameter
4 wheels Ø 125mm polyamide (2 with brakes)
2 free rolls to feed the fabrics towards the cutting table
Spécial models on request
|
|
WAGON OF STORAGE IN SPURS ref: 515
For the storage of rollers of fabric at the post of work.
10 levels of storage for rollers Ø 320mm
maxi load 300kg
Dimension on the ground 1040mm x 900mm Height 1925mm
structure mechanic welded
Wheels of Ø125mm
Can be also made customized and equipped with tablets on every floor.
|
|
|

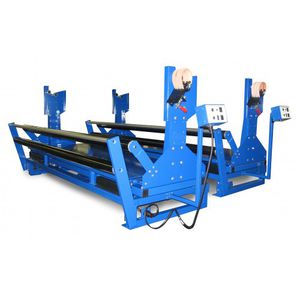

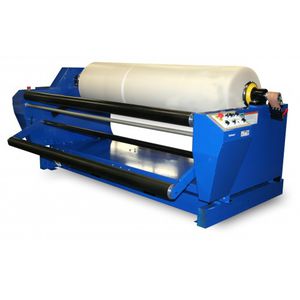

The Power Feed System simplifies material feeding by automatically adjusting tenstion for any material type. It feeds material onto the edge of the table while maintaining consistent tension. Comes in one-roll; two-roll; three-roll; six-roll with cart; or flat fold version.
|
|
|
The Multi-Roll Carousel system, available in many sizes and styles, provides tremendously simple access to multiple material rolls for end of table spreading. With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
The Heavy Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 4000mm
Capacity: 20, 40, 60 rolls
Maxi roll weight 500kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
The Mini Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 3000mm
From 7 till 33 rolls according to external Ø400MM
Maxi weight per roll 100kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
| ... products without information |
| |
|
The Power Feed System simplifies material feeding by automatically adjusting tenstion for any material type. It feeds material onto the edge of the table while maintaining consistent tension. Comes in one-roll; two-roll; three-roll; six-roll with cart; or flat fold version.
|
|
The Heavy Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 4000mm
Capacity: 20, 40, 60 rolls
Maxi roll weight 500kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
