The VHF DEBEG 6301 is the new generation of VHF equipment -
developed for the professional sailor. Any ship has to be able to
communicate directly without problems or delay. The DEBEG
6301 is available as A1 BASIC or A1 DSC version. It links safety
and distress communication with convenient telephony - all
operated from a single easy-to-use handset. In this way you
have easy and reliable communication with any vessel in your
area. In areas where coast stations offer the service, digital
selective telephony will also be available - just as from a regular
telephone.
|
|
The VHF DSC radiotelephones DEBEG RT5022 and
DEBEG RT5020 offer either simplex/semi-duplex or simplex/duplex
communications respectively.
|
|
|
|
|
|
|
GENERAL
The JHS-7 is of heavy duty design for use maritime severe conditions and equipped with 13 single-frequency voice channels including Channel 16 (156.800 MHz), providing 0.25 to one watt of transmitted power.
This equipment can be used as an on-board communication equipment.
FEATURES
- Thirteen Operating Channels
Thirteen single-frequency voice channels are provided including Channel 16 for calling and safety which can also be selected easily by an independent switch.
- Heavy Duty Design
The JHS-7 is designed to operate normally for 8 hours in extremely severe operating conditions.
- Single-Handed Operation
The control knobs and switches are in easy-to-operate arrangement to ensure single-handed operation.
- Mechanical Ruggedness
The JHS-7 is designed to withstand a 1-m drop onto a hard surface.
- Watertightness
The JHS-7 is designed to be waterproof to ensure its normal use even in rainy or water splash conditions.
- Sunlight resistance
If the JHS-7 is long exposed to the sunlight, it will not be damaged because it is composed of specially selected components and materials.
- Low Power Consumption
The JHS-7 is designed to minimize its power consumption and to maximize its operating time. Its sleep mode technique ensures more than 8 hours of its operation time.
- High Reliability
Highly reliable ICs, transistors, LEDs and other surface-mount devices are used.
|
|
|
|
|
|
|
Available as semi-duplex or full-duplex, this class A VHF radiotelephone incorporates advanced modular design that allows for maximum installation flexibility.
Direct call by AISTM
When connecting your AIS to the new VHF, new possibilities become available. This innovative feature, unique to JRC, allows you with one push of the button, to quickly navigate through a list of targets in your surrounding area. Bearing, range and MMSI information of target vessels are sorted from the shortest range upwards. You can now easily select the vessel you wish to get in contact with, and send a DSC message immediately.
Intercom and loudhailer
The VHF radiotelephone has an intercom functionality for easy communication with multiple other VHF controllers onboard!
Additionally, to always be in full control and on top of communication with deck or dock hands, a loudhailer function is built in. An optional external speaker with amplifier increases talk power, making your messaging loud and clear, thereby adding to the safety of the vessel.
|
|
Rugged VHF AM emergency communication air band transceiver. Waterproof and even floats.
Easy to operate by one hand or wearing gloves.
Channels: 2 channels, 121.5 and 123.1 MHz.
Optional selection of headsets and helmets with integrated headset for various applications.
Designed according to SOLAS ch. IV for passenger vessels in international voyage.
|
|
|
The new TR-810 is designed to meet future demands for a lightweight, rugged and flexible radio, specially designed for vehicle and desk-top applications. The flexible design is achieved by making the Operators Control Panel (OCP) detachable from the compact base unit. Communication between the two units is via standard CAT-5 cable. By being able to separate the OCP from the base unit, it opens up for three main user applications.
|
|
A compact all in one, high performance transceiver. Complies with the EN 300 676 standard. The ideal choice for ship bridges and other crowded locations where the operator will be in front of the radio.
Offering 760 channels with 25/8.33 kHz spacing in the frequency band of 117-137MHz, adjustable output (Tx) power up to 10W (40W PEP) and a built-in loudspeaker with >4W audio output.
Supplied with microphone, desk top bracket, battery cover, AC/DC converter, antenna adapter and user manual.
|
|

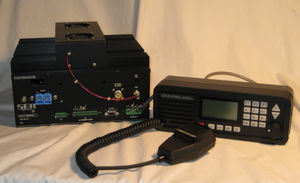

The powerful SAM MF/HF system 5000 fully complies with
all GMDSS safety requirements and provides voice
communication, DSC and radiotelex. It is available in 150 W,
250 W and 500 W versions making it suitable for all types of
vessels, from smaller fishing vessels to large merchant vessels.
The radio telephone system fully complies with all installation
requirements for sea areas A2, A3 or A4. Each radiotelephone
is operated from the robust and compactly designed control
unit (CU5100) which controls the powerful transceiver
unit (TU5150, TU5250 or TU5500) and the fast antenna tuning
units (ATU5215 or ATU5515).
|
|
|
|
|
|
|
The radiotelephone system consisting of the JSB-196GM that covers the frequency range of 1.6 to 27.5MHz and the NCT-196 DSV terminal with an internal DSC watchkeeping receiver conforms to the applicable regulations including the IMO performance standard and the national standard.
FEATURES
- Simple installation on small ship
Each equipment if of very compact design for simple installation on small ship. The GMDSS-based system consists of the JSB-196GM MF/HF Radiotelephone, the NCT-196 DSC Terminal and a DC-DC converter. The main unit of the JSB-196GM and the NCT-196 can be integrated as a stacked system and installed in a easy-to-operate place on the bridge.
- High expandability
The JSB-196GM can provide the HF E-mail communication capability by connecting a dedicated modem and a general-purpose personal computer.
- Easy operation
The JSB-196GM is designed for user-friendly operation using a single large control dial for frequency channel selection, mode setting and high/low transmit power switching. The NCT-196 integrates the DSC modem and the watchkeeping receiver in it, enabling operations to fully meet the GMDSS requirements.
- Digital signal processing(DSP)
The JSB-196GM radiotelephone uses 32-bit floating point DSP for digital signal processing in and after the IF stage. The DSP technology improves a number of functions including noise reduction and various types of interference rejection, ensuring enhanced performance.
|
|
|
SRG-250/400 Type MF/HF Radio Equipment is in compliance with the Global Maritime Distress and Safety System (GMDSS) developed by the International Maritime Organization (IMO) which is designed for automation, SSB, NBDP, DSC and MF/HF Radio Communication Equipment.
|
|

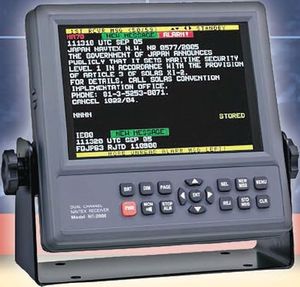

The paperless receivers are dedicated, compact and
economical dual channel NDBP receivers using FEC techniques
for reception of navigational warnings, gale warnings, ice reports,
search and rescue information, and weather forecasts within
200 to 400 miles offshore. It monitors simultaneously 518 kHz
and a selectable secondary frequency either the national
490 kHz or the 4209.5 kHz for long range services.
NAVTEX messages are displayed on an eight inch colour TFT
screen. Background and foreground colours as well as font
type are user-selectable to offer a message presentation which
suits the very best clarity under all light conditions.
The simple to use receivers offer coloured headings to clearly
identify new received messages. Stored messages can be
sorted and displayed as well as printed by station ID and
message category.
|
|
- Full meet latest IMO
- 3 receiving frequencies
- Printerless type
- Easy Installation
- Easy operation
- External Printer (Option)
- Navtex data export function for Integrated Navigation System (ECDIS or etc.)
|
|
Standard Features:
Water proof construction IP6
Simultaneously operates at 518 kHz and either at 490 kHz or at 4209.5 kHz
Compliant with IMO MSC.148(77), ITU-R.M 540-2, M.625-3, IEC-61162 Type Approval as MED (GMDSS requirements)
5.6 inch bright WVGA LCD
Compact configuration consisting of Display/Receiver and Antenna
Printer interface
Messages output in ASCII characters via RS-232C for connection to serial printer
Stores more than 200,000 characters in memory
Low power consumption
Nav data display acts as NMEA repeater for GPS or other instrumentation
|
|
|
With the Transas T-55 AIS you can display any AIS equipped vessel within VHF range on any type of AIS adapted display system. Information transmitted from vessels fitted with AIS Transponders includes name, call sign, position, heading, speed, destination, type and size of vessel. The Transas T-55 AIS is compatible with any chart/ECS and radar system capable of accepting standard NMEA 0183 AIS sentences. The installation is quick and simple, requiring only the connection to a VHF antenna, GPS antenna and computer (PC). Transas T-55 AIS is the perfect complement to a radar and has an international standardized interface to Transas Electronic Chart System (ECS) or Navi-Radar 4000 (Chart Radar).
|
|
|
The SI-60B is black box type receiver capable of displaying both class A and class B AIS information on NAVIS series chart plotters, other manufacturer's chart plotters or PC based navigation software - in real time. The unit features both RS-232 and RS-422 I/O ports and user selectable baud rate for ease of installation.
|
|
RA-2500 is a dual channel VHF receiver.
It will continuously monitor ship information from all AIS-equipped ships within VHF range.
Easy readable ship information from the built-in display: Name, MMSI, position, course and speed over ground as well as static and other voyage related information.
|
|
Just released at METS2009, the 2RxPRO is a TRUE DUAL CHANNEL AIS Receiver, with integral NMEA0183 mux and NMEA AND USB outputs. The unit features industry-leading, pro-quality sensitive digital radio receivers that monitor both AIS channels simultaneously, so you do not miss messages or have to wait for the data to be eventually received (as is the case with all single channel AND switched single channel receivers.) No setup is required - just install a suitable VHF antenna, 9-28v power (only 1watt at 12v) and connect to your PC or plotter using the USB and NMEA0183 outputs. And if you are running out of NMEA ports, the 2RxPRO can also take in a NMEA feed at 4800 baud from another instrument, and multiplex the data in with the AIS data going off to your plotter - so you don't even need another NMEA port to install it!
The 2RxPRO features a very robust, professional-grade water-resistant metal case, and integral power and NMEA cables to make installation as easy as it gets!
|
|
| ... products without information |
| |
|
|
|
|
|
Flexible Rugged High-Performance GNSS Receiver
Designed by our GNSS experts, the new ProFlexâ"¢ 500 is a powerful positioning solution that delivers state-of-the-art RTK in a rugged, highly integrated receiver design. Embedded BLADEâ"¢ technology ensures powerful RTK performance and a patented way to use multiple GNSS constellations for high-accuracy positioning and surveying solutions.
Rugged and Integrated Design
The ProFlex 500 offers a unique set of embedded communication features for maximum flexibility and resistance to bad weather. It contains completely integrated GSM, UHF and Bluetooth for wireless communications as well as Ethernet, RS-232/422 and USB connections. All output connections are optically isolated to prevent problems with installation in shipboard applications.
Made to withstand harsh environments, its environmental characteristics include: 100% condensing humidity proof, salt mist resistant, shock and vibration resistant as defined in military standard MIL STD 810 F. The receiver has an extremely rugged aluminum housing and is IP67 rated.
Flexible Solution
The ProFlex 500 innovative design makes it the ideal solution for onboard system integration - it can be easily mounted on a ship or on a vehicle for sea or land operations - and it is also a perfect backpack rover or base station solution for precise land surveying.
Adaptable to most any specific positioning usage, the ProFlex 500 is the answer for users looking for a single GNSS receiver for multiple applications. It is for example, a perfect solution for the hydrography services and dredging companies performing both onshore and offshore RTK surveys. ProFlex 500 enables optimal equipment use and simpler deployment among survey crews.
High-end Performance
ProFlex 500 offers GPS+GLONASS+20 years of field-proven Magellan technologies. It is made to withstand harsh environments, and gives you maximum flexibility on sea and land.
Fast initialization and centimeter accuracy at long-range
Unique BLADE technology for full benefit of any available GLONASS corrections
Unique built-in communication features
Rugged design for demanding work environments
Advanced multi-path mitigation and robust signal tracking for maximum data reliability
Interoperability with any vendor's reference station transmitting GPS+GLONASS L1/L2
|
|
|
|
