The sturdy, compact design and high performance make it an obvious first choice for solving the solid waste problems on medium size vessels.
The incinerator consist of a combustion chamber with burner unit and electric control panel, all assembled in one complete unit resting on four (4) feet or pads to be welded or bolted to the deck or platform. A flue gas damper and cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
The smallest in the range of the well-known TeamTec incinerators. The sturdy,
compact design and high performance make it an obvious first choice for solving the waste problems on small and medium size vessels.
The incinerator consist of a combustion chamber with burner unit and electric control panel, all assembled in one complete unit resting on four (4) feet or pads to be welded or bolted to the deck or platform. A flue gas damper and cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
The sturdy, compact design and high performance make it an obvious first choice for solving the waste problems on medium size vessels.
The incinerator consist of a combustion chamber with burner unit, sludge burning equipment and electric control panel, all assembled in one complete unit resting on four (4) feet or pads to be welded or bolted to the deck or platform. A flue gas damper and cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
|

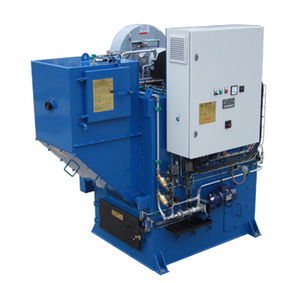

With sluice for continuous feeding of solid waste. The sturdy, compact design and high performance make it an obvious first choice for solving the solid waste problems on medium size vessels.
|
|
One of the most effective marine incinerators on the market today. Available with manual or automatic feeding of solid waste and full automatic sludge burning.
The incinerator consist of a combustion chamber with burner unit, sludge burning equipment and electric control panel, all assembled in one complete unit resting on six (6) feet or pads to be welded or bolted to the deck or platform. A flue gas damper and cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
Probably the most compact marine incinerator - relative to capacity – on the
market! Batch loading of solid waste, and fully automatic sludge burning. With
NOx reducing bilge water injection as standard.
The incinerator consist of a combustion chamber with burner unit, sludge burning equipment, bildge water injection unit, primary air fan and electric control panel, all assembled in one complete unit resting on six (6) feet or pads to be welded or bolted to the deck or platform. A frequency converter and cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
The very high capacity marine incinerator developed for ships with large heavy fuel propulsion plants. Badge loading of solid waste, and fully automatic sludge burning.
The incinerator consist of a combustion chamber with two burner units, sludge burning equipment, primary air fan and electric control panel, all assembled in one complete unit resting on eight (8) feet or pads to be welded or bolted to the deck or platform. A flue gas damper and flue gas cooling fan are delivered as separate units to be installed in the flue gas duct or funnel. The starter for the flue gas/cooling fan is located in the incinerator control panel.
|
|
Incinerator (model no.) 1200 S WS 1200 SL P 1200 SL WS P
Combustion Capacity (kW) 1163 1163 1163
Combustion Capacity (kcal/h) 1,000,000 1,000,000 1,000,000
Combustion Capacity - Solid waste
IMO spec. (kg/h) 230 - 230
IMO spec. (l/charge) - 500 -
Combustion Capacity - Sludge oil
IMO spec. (l/h)
(at 20% water content) - 135 135
Max. l/h
(at approx. 50% water content) - 200 200
Outlet from incinerator (mm) ø 406 ø 406 ø 406
Weight approx. (kg) 6,100 5,700 6,100
|
|
Incinerator (model no.) 1500 LP 1500 SL XL WS P
Combustion Capacity (kW) 1500 1500
Combustion Capacity (kcal/h) 1,290,000 1,290,000
Combustion Capacity - Solid waste
IMO spec. (kg/h) - 230
IMO spec. (l/charge) - -
Combustion Capacity - Sludge oil
IMO spec. (l/h)
(at 20% water content) 170 170
Max. l/h
(at approx. 50% water content) 258 258
Outlet from incinerator (mm) ø 456 ø 456
Weight approx. (kg) 8,000 8,200
|
|
Incinerator (model no.) 2400 LP 2400 SL XL WS P
Combustion Capacity (kW) 2325 2325
Combustion Capacity (kcal/h) 2,000,000 2,000,000
Combustion Capacity - Solid waste
IMO spec. (kg/h) - 230
IMO spec. (l/charge) - -
Combustion Capacity - Sludge oil
IMO spec. (l/h)
(at 20% water content) 263 263
Max. l/h
(at approx. 50% water content) 400 400
Outlet from incinerator (mm) ø 550 ø 550
Weight approx. (kg) 11,000 11,200
|
|
Incinerator (model no.) 800 S WS 800 SL P 800 SL WS P
Combustion Capacity (kW) 814 814 814
Combustion Capacity (kcal/h) 700,000 700,000 700,000
Combustion Capacity - Solid waste
IMO spec. (kg/h) 100 - 100
IMO spec. (l/charge) - 350 -
Combustion Capacity - Sludge oil
IMO spec. (l/h)
(at 20% water content) - 95 95
Max. l/h
(at approx. 50% water content) - 140 140
Weight approx. (kg) 5,800 5,500 5,800
|
|
Incinerator (model no.) 600 S WS 600 SL P 600 SL WS P
Combustion Capacity (kW) 581 581 581
Combustion Capacity (kcal/h) 500,000 500,000 500,000
Combustion Capacity - Solid waste
IMO spec. (kg/h) 100 - 100
IMO spec. (l/charge) - 250 -
Combustion Capacity - Sludge oil
IMO spec. (l/h)
(at 20% water content) - 66 66
Max. l/h
(at approx. 50% water content) - 100 100
Weight approx. (kg) 4,850 4,600 4,850
|
|
Incinerator (model no.) 200 S WS 200 SL 200 SL WS
Combustion Capacity (kW) 209 209 209
Combustion Capacity (kcal/h) 180,000 180,000 180,000
Combustion Capacity - Solid waste 40 - 40
IMO spec. (kg/h)
IMO spec. (l/charge) - 150 -
Combustion Capacity - Sludge oil
IMO spec. (l/h) 24 24
(at 20% water content)
Max. l/h
(at approx. 50% water content) 38 38
Weight approx. (kg) 3,175 3,050 3,175
|
|
|
|
|
|
|
Waste Incinerator System
The incinerator is designed to burn mixed solid waste, sludge oil and dewatered wet waste according to the IMO standard.
From a sorting table the waste is manually fed into a heavy-duty shredder.
The shredded burnable waste is fed by gravity into the dry waste silo. The silo is equipped with level sensor, heat detector and connection for fire fighting.
By gravity the waste falls into the incinerator's feeding chamber with hydraulically driven upper and lower sliding gates.
In the incinerator the burning of waste is done in two steps. In the primary chamber decomposition is achieved by partial pyrolysis. The complete breakdown of gases and residual components takes place in the secondary chamber. The temperature in the incinerator is approx. 850 °C to ensure a complete destruction of all organic materials and consequently the flue gas is odourless.
The incinerator is equipped with a water injection system for increased waste burning capacity and reduced oil consumption.
For automatic control of opacity and temperature of flue gases, a smoke density/temperature unit is installed between the flue gas/air mixing battery and the flue gas fan. The unit controls the supply of combustion air and the secondary burner. The sensors are automatically cleaned using compressed air.
The system is designed for continuous operation with automatic removal of ash from the ash bed. A screw conveyor empties the ash into an interchangeable ash container. The container is transported by lift to the garbage room, where it is stored for later ashore disposal.
|
|
|
|
|
|
|
Incinerator System (600 %u2013 2200 kW)
The incinerator is designed with the very latest technology in multi-chamber, semi-pyrolysis with flue gas emissions within IMO MARPOL regulations. The incinerators are also capable of meeting EU regulations, which is in accordance with the future general demands for air emissions.
Burnable materials are processed in a Dry garbage shredder and collected in the Dry garbage silo. The garbage is fed by gravity to the Incinerator and burned in the fully automated computer controlled incineration process.
The feeding technology is developed to secure a homogenous combustion and low dust emission. The solution is also optimal for burning sludge from food waste and waste water.
The Scanship incinerator is also equipped with a fully integrated Sludge Oil Burning System. The system consists of a valve package and dosing pump feeding sludge oil with temperature of 60-90°C into the primary combustion chamber
The combustion in the primary chamber is pyrolysis, based on, burning with a limited supply of oxygen. The chamber has two zones for degassing and one ash-annealing zone. The primary chambers have an automatic continuous ash removal system. The ash is removed through a chute below the incinerator into a container or transported with screw to bagging equipment.
|
|
|
|
|
|
|

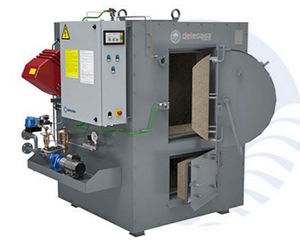

Solid wastes are fed into the incinerator through the garbage door and incinerator is then switched on.
For the combustion of pumpable waste, the homogenizer (L) positioned on the sludge service tank, has to be started up, after the neccessary water setting and drainge. It's now necessary to switch the sludge pump (H) so as to feed the sludge into the incinerator.
Heated by an electric heater (Q) the sludge is fed to the main burners (B) and sprayed into the furnace. The pilot burner (A) fed by the Diesel-oil pump (I) ignites or vaporizes the sludge depending upon its condition.
The air fan (C) is installed to supply air for combustion, aswell as for cooling and dilution, to ensure a flue gas temperature below 350°C.
The atomized air for the main burners (B), comes from the air pressure reducing device (D) fed by the ships compressed air service piping, or alternatively by an air blower. The monitoring and control devices installed in the control panel, modulate the incinerator action on the thermal load and carry out its automatic and operation.
|
|
The incinerators in our program are very easy to operate and require a minimum of maintenance.
The annex V of MARPOL 73 regulates the discharge of garbage. It is much easier to comply with the regulations if you install an incinerator that really works and, even more important, that is very easy to operate and maintain. The incinerator need not be a headache for the crew, the automatic processes of our marine incinerators make them ideal to work without excessive care and with reduced maintenance.
With our incinerator you can dispose of one or more of the following
sludge (heavy fuel oil installation)
waste oil
lubricants
solid waste like cardboard, plastics, paper, wood, rubber, cloth, oily rags
food waste
sewage sludge
hospital waste (on hospital ships)
The incinerators are type approved according
European Marine Equipment Directive 96/98/EC, as amended by Directive 2002/75/EC
Marpol 73/78 annex V, Regulation 16 (2) (a), as amended
IMO resolution MEPC.76/40
|
|

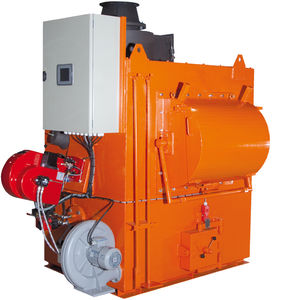

The Pyrall PR is a static incinerator which functions by pyrolysis, destroying refuse cheaply and efficiently tanks to the special shape of its combustion chamber and the forced air system adopted.
The Pyrall PR handles urban refuse of all kinds household, kitchen, etc.
Pyrall PR emission is absolutely odorless and colorless, since the reactor chamber temperature is kept at between 900-1000 ° C; a level at which complete oxidation of the gases given off in the primary chamber is able to take place.
Once refuse is loaded, the user simply presses a button to set the incinerator cycle in motion and subsequent stages are carried out by PLC control.
Refuse can be fed into the incinerator using either an aotomatic mechanical loader or by a manual process.
Ashes are easily raked out through a generously proportioned Hatch and/or by an automated gravity door (ADA Automatic Discharge of Ashes option).
|
|
