RDC400WP Outdoor dome with pan&tilt and zoom functions
Ceiling mounted camera station with Pan&Tilt and Zoom for outdoor use
Technical data:
16 X Zoom lens
Pre-set positions, compatible with all Hernis control systems
360 degree endless panning
Ramp speed 0-240 (controlled by joystick
Tilt 0 - 90)
470 TVL, 1/3" camera
RS 422 interface to Hernis control system
Approval IP 67
|
|
EX Dome with Electro magnetic compatible glass
The HERNIS Ex270 dome is certified for use in hazardous areas. The customised glass is Electro-Magnetic Compatible (EMC) eliminating the need for extra safety precautions during cleaning. The new model offers 360deg. continuous pan and is tolerant to vibration which makes it well suited for the offshore and marine environment. IP rating is 67 and the material is our usual high quality 316L stainless steel. As with all our domes it can be controlled directly from all our control systems.
|
|
Compact camera station for outdoor use
Technical data:
Approval: IP67
Material: Stainless steel AISI 316L
Surface: Electro polished or painted
Mounting: Bracket
Option: Sunshield
1/3" NTSC or PAL camera, High Resolution,
Fixed lens: 2,8mm, 4 mm, 8 mm, or 12mm.
|
|
Compact explosion proof camera Station
Technical data:
Certificate: Nemko and Atex directive 94/9/EC
Protection: IP66
Material: Stainless steel AISI 316L
Surface: Electro polished
Mounting: Bracket
Glass: Tempered
Power supply: 24 VAC50/60 Hz
Weight: 6 kg
1/3" NTSC or PAL camera, High Resolution, Fixed lens: 2,8mm, 4 mm, 8 mm, or 12mm.
|
|
|
This is the perfect solution for the Crane Operators. With its hydraulic damper it provides a stable picture of all the "blind spots" previously hidden for the Crane operator. The camera is Exd certified for Zone 1 and 2 with high IP-rating and is especially constructed for the Marine & Offshore environment. Colour Camera and Monitor is being used to ensure best possible picture and by offering a selection of monitor sizes this equipment should suit any cabin. Additional camera for monitoring the winch is optional.
|
|
Weather proof camera station with auto focus feature
The PT9 was developed to take full advantage of the size and functionality of the ¼" high resolution compact or block cameras available in the market. The unit is based on the well-proven PT30 station but includes selectable auto focus not available on traditional camera and lens combinations. The auto focus function will automatically turn off if no zoom, pan or tilt commands are given to the camera station. This to avoid un-necessary wear and tear on the focus mechanism.
The PT9 safe area camera station is available with wiper and sunscreen as depicted (PT9W).
|
|
Explosion proof camera housing for use in hazardous areas
Technical data:
Certificate: Nemko and Atex directive 94/9/EC
Approval: Eexd(e) IIC T6 (CENELEC)
Protection: IP66
Material: Stainless steel AISI 316L
Surface: Electro polished
Mounting: Upright or hanging
Glass: Tempered
Power supply: 30 VAC 50 / 60 Hz
Weight: 19 kg
1/4" NTSC or PAL camera, High Resolution, Zoom lens: 18x zoom
|
|
|
|
|
|
|
The Orlaco solution

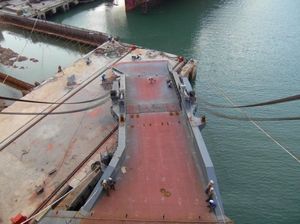

The days of difficult manoeuvring at wharfsides or whilst passing through locks are over. Orlaco’s Maritime cameras are able to 'see' exactly what is happening along side the ship’s gangways and also show the precise lines of the vessel. The images are so real that it seems as if you have literally taken a step outside the cabin onto the ship’s or vessel’s deck.
The cameras provide ample visibility of the front deck of the ship or vessel, so that highly stacked containers or other obstacles on the deck do not cause any visibility problems. An additional camera can also be installed to the back deck, ensuring optimal visibility of this area. Orlaco Maritime improves the safety of your crew, passengers and cargo, even under extreme circumstances and in dangerous situations, for example on tankers. Clear and comfortable visibility is a basic requirement for optimum safety on our shipping routes. Together with the help of Orlaco’s Maritime system, you will always have sufficient visibility.
|
|
|
MECH/4 camera stations are fitted with high quality, high resolution CCD camera modules as standard.
|
|
Constructed from 316L stainless steel, these camera stations are idealfor the monitoring and surveillance of specific equipment and areas – such as perimeter fences, site entrances and remote equipment.
Due to their compact design, and cost effectiveness, MECH/6 fixed camera stations can be installed in areas where available space is limited, or deployed on a large-scale for perimeter protection. These camera stations are also available with remote zoom options.
|
|
Synectics’ Long-Range camera stations combine powerful optics with highly sensitive CCD camera modules, providing a performance capable of detecting a man at ranges in excess of 8 Km, recognition at 1.5 Km and identification at
800m. The LRS-1500M is ideal for providing complete long range security in difficult and demanding applications, such as coastal protection, waterways surveillance and general marine reconnaissance.
|
|
Orlaco’s camera systems are robust and can be used in the most extreme weather conditions. They help with visibility where and when ever needed. The systems can be used in various situations on ships and vessels, e.g. in the machine room, pump area, winches, on helicopter landing pads, car decks, ferries etc. — any imaginable place is possible.
Optimum safety in machine rooms and technical installations is of vital importance in the maritime sector. Our systems are therefore on the lookout 24 hours a day, 7 days a week.
In spite of all the high-tech components, the Orlaco systems are logical to use and easy to operate. The systems can be operated individually, from a distance or grouped through a video network system adapted to your specific situation and needs. All it takes is clicking the mouse or using the trackball to control all the observation locations as well as the cameras.
|
|
Fixed thermal camera station
Technical data:
Approval: IP66
Material: Stainless steel
Surface: Electro polished
Pan speed: 0-40/sec
Equipment: Receiver, Washer/Wiper
1/3" NTSC / PAL camera, High Resolution, 10 x or 15 x zoom lens, can be controlled from HE 250/ HE 400.
|
|
Complete pan & tilt camera station which combines Thermal and CCD imaging
Technical data:
Approval: IP66
Material: Stainless steel
Surface: Electro polished
Pan speed: 0-40/sec
Tilt speed; 0-20/sec
Equipment: Receiver, Washer/ Wiper
1/3" NTSC / PAL camera, High Resolution, 10 x or 15 x zoom lens, can be controlled from HE 250/ HE 400.
|
|
The EX285T is an EX-proof camera station designed for night-time surveillance in marine/EX environments. The key function is to detect oil spills on water surface, as well as personnel and vessel detection in total darkness.
The sensor is a long-wave infrared thermal imaging device (7-14 micron), able to detect a person at up to 500m distance. (Detects an object 2,5x2,5 square meters at up to 1000m). No cooling unit is required for the sensor, and thus the lifetime is estimated to 20 000 hours.
The camera station is delivered complete and fully tested with camera, lens and telemetry control for HERNIS 400, 250 and 200 control systems.
Export restrictions apply to this product, and we reserve the right to refuse any sales.
|
|
Complete Thermal pan & tilt camera station with variable speed
Technical data:
Approval: IP66
Material: Stainless steel
Surface: Electro polished
Pan speed: 0-40/sec
Tilt speed; 0-20/sec
Equipment: Receiver, Washer/ Wiper
1/3" NTSC / PAL camera, High Resolution, 10 x or 15 x zoom lens, can be controlled from HE 250/ HE 400.
|
|
The Night Navigator1 camera system is our newest and smallest system with only 15 cm diameter. It is equipped with a high resolution Un-Cooled thermal imager in a compact, extreme weather resistant pan & tilt gimbal. The Night Navigator1 provides sharp vision from broad daylight to the complete darkness.
The 2 times and 4 times electronic zoom allows the captain to zoom in on potential obstacles or danger. The system is also a tool for security and surveillance and man overboard rescue support as the thermal imager analyses the heat difference between objects (body, motor, scenery, objects in the water, movements of the water, …).
|
|
The Night Navigator3 camera system is equipped with
1. High Resolution Thermal Imager
2. Gated Image Intensified Night Vision Camera
3. High Definition Day Camera
The two axis stabilized gimbal is designed for marine environment and
controlled from the bridge.
Each camera provides the clearest image available on the private marine market today. At any point in time, there are 2 live video feeds visible simultaneously on a split screen monitor.
|
|
Compact explosion proof camera station for underwater use.
Technical data:
Certificate: Nemko and Atex directive 94/9/EC
Approval: Eexd IIB T6 (CENELEC)
Protection: IP68, 3 Bar
Material: Stainless steel AISI 316L
Surface: Electro polished
Mounting: Bracket
Glass: Tempered
Power supply: 12 VDC /
Weight: 4,6 kg
1/3" NTSC or PAL camera, High Resolution, Fixed lens: 2,8mm, 4 mm, 8 mm, or 12mm.
|
|
|
HERNIS 400 CCTV system has a Windows NT based PC which controls a video matrix. The system is expandable in steps of 16, from 16 cameras and monitors, up to 992 cameras, 256 monitors and 256 keyboards in a single HERNIS 400 CPU system. Each of the 16 video outputs on each card has a programmable text generator which super imposes text onto the video image. The internal communication of the HERNIS 400 system operates on CAN (Controlled Area Network). The CAN configuration makes it easy to add new communication nodes for camera stations and keyboards.
|
|
The Night Navigator1 camera system is our newest and smallest system with only 15 cm diameter. It is equipped with a high resolution Un-Cooled thermal imager in a compact, extreme weather resistant pan & tilt gimbal. The Night Navigator1 provides sharp vision from broad daylight to the complete darkness.
The 2 times and 4 times electronic zoom allows the captain to zoom in on potential obstacles or danger. The system is also a tool for security and surveillance and man overboard rescue support as the thermal imager analyses the heat difference between objects (body, motor, scenery, objects in the water, movements of the water, …).
|
|
The Night Navigator3 camera system is equipped with
1. High Resolution Thermal Imager
2. Gated Image Intensified Night Vision Camera
3. High Definition Day Camera
The two axis stabilized gimbal is designed for marine environment and
controlled from the bridge.
Each camera provides the clearest image available on the private marine market today. At any point in time, there are 2 live video feeds visible simultaneously on a split screen monitor.
|
|
Compact explosion proof camera station for underwater use.
Technical data:
Certificate: Nemko and Atex directive 94/9/EC
Approval: Eexd IIB T6 (CENELEC)
Protection: IP68, 3 Bar
Material: Stainless steel AISI 316L
Surface: Electro polished
Mounting: Bracket
Glass: Tempered
Power supply: 12 VDC /
Weight: 4,6 kg
1/3" NTSC or PAL camera, High Resolution, Fixed lens: 2,8mm, 4 mm, 8 mm, or 12mm.
|
|
There has been an increase in the level of global piracy on the high seas. Vessels which operate in known high risk areas of the Indian Ocean and the South China Sea are being advised to prepare the crew and vessels before to reduce this risk and increase the chance of escape from attack. In fact, all commercial vessels should consider preparing for the worst case as the risk of piracy is growing in many other areas of the world.
Hyde Marine Inc. offers the Hyde SENTRY™ non-lethal counter-piracy solution to meet ship-owners’ increasing concern for the safety and security of crews, ships and platforms.
|
|
|
|
