A chain shackle is composed of a U-shaped yoke and a pin. It is used to connect a chain to an anchor, while leaving sufficient mobility in the ground tackle, and without creating a weak point.
These fittings are found on anchor lines aboard ships, yachts, work boats and other vessels. They also can be used to moor a barge or a pontoon along a dock or to a main anchor chain. Some shackles are designed for towing ships.
The most common types are D-shackles and bow shackles, generally closed by a bolt and nut or with a cotter pin. Some include a swivel to increase the freedom of movement between the chain and the anchor. Such shackles are generally made of galvanized steel, though some are stainless steel.
Choice will depend on chain diameter. The shackle diameter should large enough not to constitute a weak link in the mooring. Choice between a bow and a D-shackle will depend on the freedom of movement required by the connected elements.
|
|
Shackle for ship anchor chains (D type) Posidonia S.r.l.
Anchor D-Shackle to be connect between anchor...
|
|
Shackle for ship anchor chains (D type) 1011202 DESUN Industries
Under the commissioning of our customers, we have been working for years with the purchase of integrated mooring systems, including anchors, anchor chain cables and deck equipments. All...
|
|

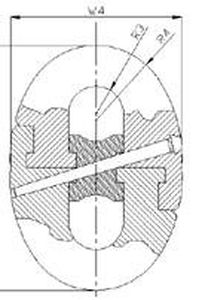

Joining shackle for ship anchor chains (Kenter type) FenderCare
Stud link chain is available in sizes from 12.5 mm diameter to in excess of 120 mm being manufactured to internationally agreed standards. The...
|
|
Shackle for ship anchor chains (bow) Muir Windlasses
Grade S hot dipped galvanised and stainless steel shackles for all marine and commercial...
|
|
Towing shackle for ship chains DCL Mooring and Rigging
Material : bow and pin alloy steel, Grade 8, quenched and tempered Safety Factor : MBL equals...
