Born from Nauticomp’s prestigious Signature Series, the Signature Series II line of displays combines all of today’s cutting edge technology with ease of use. This completely re-designed product includes our famous dim to red technology on all inputs. A slim case design so today’s mariner can put a larger display into a more confined helm space and a dial for detailed dimming and brightness settings on the fly. A combination of 6 inputs 1 DVI, 2 VGA and 3 Composites on the available 12.1”, 15.0”, and 19.0”, puts the Signature Series II at the top of the pack for its industry sector. A 3 Year Limited Warranty shows Nauticomp’s continued commitment to service and product quality.
|
|
A complete line of dedicated marine certified displays...
The Centric range consisting of 15.0”, 19.0”, 21.3” and 23.1” LCD displays primarily designed to withstand the harsh marine environments.
All the displays have been certified by an independent test house and meet the stringent demands of marine & military specifications:
IEC 60945 Marine Communications
IEC 61174 ECDIS¹
IEC 60936 ARPAR RADAR¹
IEC 60529 IP Rating 66 & 67
IACS E10 For class approvals i.e. ABS, DNV, LRS
MIL 810-F Environmental
MIL 901D Hammer Test ²
Each display has the unique ability to accept either AC or DC supply.
The approved solution for your navigation and ships automation applications...
Notes:
1) Not applicable to 15.0" LCD Display
2) Applicable to 15.0" & 19.0" LCD Display only.
|
|
The 7000 Series manufactured in the USA in full compliance with International Regulations
- 3 sizes - 18", 20", 23"
- Brightness levels from 250-1000 nits
- Chemically hardened scratch proof glass
- Approvals, Certificates & Declarations of Conformity
- EN60945 (IEC60945)
- ABS- American Bureau of Shipping*
- DNV-Det Norske Veritas*
- LRS- Lloyd's Register of Shipping*
- BV- Bureau of Veritas*
- GL- Germanischer Lloyd*
- Hand Made in the United States
- Pending
|
|
|
The Reverse Mount Display is the only one of its kind in the marine electronics industry. It is installed from behind the helm with no bezel showing. Only the image on the screen shines through for a very sleek and understated look. The Ultimate in flat displays. Wide viewing angle from SVGA to SXGA. Light levels range from 200 nits up to 1800 nits and are anti glare and anti scratch. Pilothouse, Daylight, Sunlight and Super Sunlight Brightness. Available in 12, 15, 17, 18, 20 and 23" sizes. No Buttons and No Bezel. 9 inputs...4 VGA 4 Composite 1 DVI. Unlimited inputs through the VEI SSIR Optional touch screen. Limited two-year warranty. Hand Made in the United States
|
|
The DM Series Monitor - Designed with you in mind
On Screen Menu - user defined
No more scrolling through pages of unused sources
9 inputs, 4 VGA, 4 composite, 1 DVI
Scratchproof anti-glare glass
Available in Pilothouse, Daylight, Sunlight & SuperSunlight Brightness
Flexible and easy installation from the front!
Optional Touch screen
Cosmetic bezel available to match any helm color or design
Available in 12, 15, 17 and 20" sizes
Hand Made in the United States
|
|
The Ultimate in flat displays
Wide viewing angle from SVGA to SXGA. Light levels range from 200 nits up to 1800 nits and are anti glare. Fully Sunlight readable to Pilothouse brightness. Available in 8, 12, 15, 18, 20 and 23" sizes. All sizes available in Reverse Mount...No Buttons and No Bezel 9 inputs...4 VGA 4 Composite 1 DVI. Optional touch screen. Limited two-year warranty. Hand Made in the United States
|
|
|
From the the company that pioneered the glass bridge. The most advanced marine display system in the world. LED marine monitors are cooler and brighter than standard displays. This system features a small LCD controller that will control one of the screens at your helm or up to 10 of them. This unique controller is sleek and simple to use. The bezel has no buttons and is available in all glass as a no cost option.
|
|
|
The Alpha 21 is an excellent choice for any pilothouse or flybridge installation and is perfect for radar, sonar, navigation systems, video cameras, and computers. This high-clarity monitor provides easy viewing from virtualy any location and is the preferred choice for sunny conditions. If you need clarity, simplicity, elegance, and long-term reliability, choose AmbientNAV.
|
|
The Alpha 17 is an excellent choice for any pilothouse or flybridge installation and is perfect for radar, sonar, navigation systems, video cameras, and computers. This high-clarity monitor provides easy viewing from virtualy any location and is the preferred choice for sunny conditions. If you need clarity, simplicity, elegance, and long-term reliability,
choose AmbientNAV.
|
|
32" MM Series Glass Bridge Display
The largest marine monitor available on the market in the world. All glass front no external bezel. Available in 1,200 NIT Sunlight readable and 500 NIT Pilothouse versions. 9 inputs 4 VGA 4 Composite 1 DVI standard. Unlimited inputs using the VEI SSIR Controller. 16 x 9 aspect ratio for true split screen operation. Waterproof when flush mounted. VEI Glare proof glass that cant be damaged by abrasive salt water or most harsh chemical cleaners. Innovative cooling system. 2 year warranty.
|
|
VEI invented the Glass Bridge years ago. At VEI we go one step farther...VEI has a department dedicated to the fabrication of custom installations. We are able to design and manufacture the helm of your dreams. From idea to CAD drawing to fabrication our engineers will design an ergonomically perfect helm. You will receive an easy to install and easy to service state of the art masterpiece. We use only the finest marine grade aluminum - built to withstand the worst that the sea, saltwater and sun can throw at it.
We have the Glass Bridge integrated helm availble in all display sizes for any amount of displays with very short delivery times. Any of our Monitor sizes 8", 12", 15", 17", 20", 23 or 32" can be fitted into a GLASS BRIDGE HELM as shown on the included photo. The photo as seen has two VEI 17" displays joined together as one sleek unit.
|
|
|
|
|
|
|
What's so special about Aadaptiv GB Monitors:-
• High Peformance - HD & Widescreen 16:10
• Multifunctional - 11 Source Inputs
• Integrated Control - Supports Multiple Monitors
• Dual Voltage - Accepts AC & DC supply
• IMO Compliance - ABS, IEC:60945, 61174 & 62388
Designers, Integrators and Captains will find AAdaptiv’s GB Monitors the solution to their seamless integration needs. Maritime certification for recreational and commercial vessels has been achieved without sacrificing pure glass design aesthetics and operational functionality.
Designed with both new-build and refit applications in mind, AAdaptiv’s LCD panel sizes, including Widescreens, offering “Mix and Match” combinations with full control integration capability and space optimization.
AAdaptiv’s Glass Bridge Monitors utilize a unique remote. These remotes provide individual control for Backlight Brightness, OSD Functionality and Signal Source for up to 7 GB Monitors.
Monitors. Each Glass Bridge Monitor is equipped with two dedicated ports enabling daisy-chain configurations between multiple Glass Bridge Monitors using standard and Ethernet cables.
Key features include Deep Dimming Backlight Brightness control down to less than 1 cd/m² (NIT) to meet ECDIS requirements. Our Glass Bridge Monitors are equipped with the facility to accept AC and/or DC power - enabling control system redundancy.
AAdaptiv’s Glass Bridge Monitors are ABS Type Approved with additional certification of IEC 60945 (Marine Communications), IEC 62388 (Radar/AIS/ARPA) and IEC 61174 (ECDIS).
A Glass Bridge Monitor by AAdaptiv Technologies. It’s a command decision for the digital world...
|
|
|
This monitor is an excellent choice for any pilothouse or flybridge installation and is perfect for radar, sonar, navigation systems, video cameras, and computers. This high-clarity monitor provides easy viewing from virtualy any location and is the preferred choice for sunny conditions. If you need clarity, simplicity, elegance, and long-term reliability, choose AmbientNAV.
|
|
|
|
|
|
|

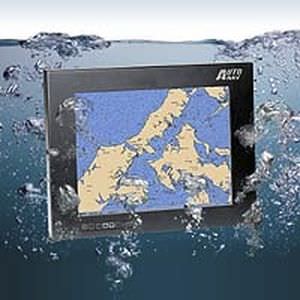

Waterproof and reliable
Built to last, Locomarine displays will survive the most violent sea conditions. Enclosure is made from durable aluminum and sealed to be totally submersible. Beside that, all components are prepared for operating in extended temperature range.
Sunlight readability
Locomarine displays are built in two different backlight versions. Direct sunlight version with 1000 NIT backlight and SVGA resolution of 800x600 pixels and XGA resolution of 1024x768 pixels and 450 NIT backlight. XGA version will be readable under daylight but not on direct sunlight condition.
Touch-screen technology
Both models are equipped with resistive touch screens for easier operation under high seas or anywhere else where usage of mouse or similar pointing devices is not possible.
SUB-12 UB XT
Size: 305x240x63 mm
Screen: 12.1"
Resolution: 800x600 px
Backlight: 1000 NIT
Dimming range: 0-100%
Video in 1: RGB analog 0.7 p-p 75 ohm
Video in 2 : RCA Composite video
USB port: 2x USB (USB 1.1 type A)
Touchscreen: 5-wire Resistive, USB
Weight: 3,5 kg
Enclosure: durable aluminium
Power: 10-36 VDC
Consumption: 36 W
Operating environment: -20 - 50 °C, 95% relative humidity
Storage environment: -30 - 60 °C, 95% relative humidity
Waterproof and dust protection rating: IP 67
Vibration and shock: 5 - 500 Hz 1.5 g, 30 g, 11 ms (MILSPEC 810E and 810C)
Warranty: two years (limited)
|
|
- Crystal clear 12" and 15" monitors for use as main or remote displays
- Sunlight viewable with wide viewing angle allows comfortable viewing by more than one person
- Built-in scaler allows monitors to accept up to SXGA (1280 x 1024) resolution
- Waterproof, low profile unit allows for flush mount installation even in an open fly bridge
- Wide range of inputs: 2 RGB analog, 1 Digital Video Interface (DVI) and 3 NTSC/PAL
- Unique programmable video input names
- PIP function allows for displaying two images on the screen at the same time
- Easily control display with standard infrared remote
|
|
Specifically designed for outside applications, the VDS 210 SV display provides a standard XGA 10” LCD/TFT panel suitable for being deployed in harsh environments.
Its bonded glass ensures both perfect readability and comfort in every light condition while effectively preventing dew condensation effects that downgrade visibility.
|
|
Specifically designed for outside applications, the VDS 208 SV display provides a standard SVGA 8" LCD/TFT panel suitable for being deployed in harsh environments.
Its bonded glass ensures both perfect readability and comfort in every light condition while effectively preventing dew condensation effects that downgrade visibility.
|
|
Specifically designed for outside applications, the VDS 215 SV display provides a standard XGA 15” LCD/TFT panel suitable for being deployed in harsh environments.
Its bonded glass ensures both perfect readability and comfort in every light condition while effectively preventing dew condensation effects that downgrade visibility.
|
|
Portable, manageable, powerful, with display to colors wide, touch screen and audio with function intercom, the 5,2%u201D wireless of the AMX he is a little one capolavoro also in the design. To graphical level it is equipped of a powerful graphical processore in order to develop interface software works them and simple to use, that they can space from the supervision and control of the systems till the complete management of the yacht, also in audio within video.
The 5,2%u201D it can be lodged in the comfortable one docking station motorized to mount to bulkhead, being thus become an interface comfortable for anyone and always available. According to the furnishing it can be chosen black or white man. At the level of functionality the practical rotellina allows to slide fastly lists of great dimensions.
|
|
|
|
|
|
|
Panel IPC with 19" TFT touch display, shock-absorbing HDD 40 GB hard disk and fanless CPU technology for use in demanding industrial environments, the EPC T190 comes with Windows XP Professional Multilingual operating system.
Numerous communication ports and two built-in PCI expansion slots provide flexibility in your application and enables easy updating as well as data storage. The modular construction of the EPC means you can upgrade your screen without any major obstacles.
The EPCs feature shock-absorbing hard disk, vibration-limiting construction and built-in expansion slots with a solid card holder to facilitate high performance in severe environments. Additionally, the fanless CPU technology avoids both mechanical wear-and-tear and the necessity of cleaning any housing fan filter, giving you a highly reliable yet truly low-maintenance EPC.
The Intel Celeron Mobile 1.3 GHz processor is handpicked in close cooperation with Intel. With the extended life cycle of this processor, we can offer you replacement units that do not require any design changes, in turn affording your products an extended life cycle.
|
|
|
With 1024 x 768 pixels, this high resolution 15 inch TFT-display monitor has an IP65 front and IP20 back.
|
|
|
Hatteland Display is the first port of call for system integrators requiring marine displays from small sizes up to large widescreens, computers and panel computers. Our ability to customise our products increases our flexibility even further and ensures our customer's get equipment to their exact specification, whatever that may be.
|
|
|
|
|
|
|
Industry's largest display in the smallest chassis frame...
Nauticomp's Glass Bridge displays offer the largest display in the smallest housing, minimizing overall dimensions, enabling multiple displays to be mounted and maximizing available space. Glass Bridge Series range from 12.1" through to 21.3" in either Daylight or Sunlight readable variants.
Each display is fitted with interface circuits that allow it to be connected with up to ten (10) inputs ranging from RGB, VGA, DVI-I, S-Video, Component & Composite Video sources. The display can accept signals of lower resolution, such as VGA. These signals are scaled so that they are displayed full screen.
Along with conventional LCD brightness and contrast controls, the display has an advanced dynamic brightness dimming technique, permitting full brightness to "Dim to Red" selectable at any brightness which is typically employed during night-time operation at low backlight levels.
A unique but simple remote On Screen Display (OSD) user interface known as the GB Commander allows the user to adjust a wide variety of display parameters. Simultaneous control of backlight brightness for up to ten (10) Glass Bridge Displays can be achieved via one GB Commander.
All displays are designed for operation from an external regulated 12.4V DC supply.
Nauticomp offers a wide range of external power supplies to match the power consumption - 12V DC, 24V DC & 110/230V AC.
|
|
|
Following the line for our commitment to thin edge design, and the cleanest possible look for your pilothouse, the Centric GB displays from Nauticomp keep the complete look and feel of a “Glass Bridge” of the future. This line of type approved displays meet the demands of today’s high end recreational yachts, and commercial vessels alike. All units have been designed for multiple display installations with a compact remote designed to control up to 5 displays from a single keypad! Multiple inputs, allow today’s high tech captain to have all sources, available at each display, with total redundancy. Design your pilothouse around the Centric GB, and combine the real “Glass Bridge”, with first class quality of Nauticomp products.
|
|
|
Designed for navigation tasks. With 1600 x 1200 pixels, this high resolution monitor features a 23 inch TFT-color display for optimal display of electronic nautical charts and RADAR images. The monitor is approved for ECDIS and RADAR certification and features antireflective glass without touch for ideal daylight readout and has an IP65 front and IP20 back.
|
|
Our most powerful multifunction displays, Raymarine E-Series delivers chartplotter, fishfinder, radar, and video in an easy to use networked navigation system.
Featuring ultra bright displays, a customizable navigation interface, and super fast networking, E-Series sets the new standard for integrated marine electronics.
|
|
|
|
|
|
|
The perfect choice for mounting at the helm or on a center console, Raymarine's C70 puts the power of Multifunction Navigation into a single compact display. With inputs for GPS sensor, radar, HD Digital sounder module, SIRIUS Satellite Radio and Marine Weather, the C70 Multifunction Navigation Display is easily transformed into a navigation system that's just right for you.
Utilizing the latest LCD display technologies, the C70 is direct sunlight viewable with excellent contrast and a wide viewing angle. A high resolution 640 x 480 pixel transflective LCD panel with 256 colors makes for a crisp, clear picture that's visible under even the most challenging lighting conditions.
C70 supports Raymarine's SeaTalk and SeaTalk2/SeaTalkNG navigation networks for communication with instruments and autopilots. C70 also supports the industry standard NMEA 0183 and NMEA 2000 for integration with 3rd party electronics as well as electronic engine monitoring.
Rugged and waterproof, the C70 includes both a convenient trunion mounting bracket as well as a low-profile flush mounting kit for a clean, unobtrusive helm.
The Raymarine C70 kit comes with an owners manual, quick reference guide, full-face suncover, trunion mounting kit, flush mounting kit, NMEA input/output cable, power cable, and SeaTalk cable.
|
|
|
Hatteland Display is the first port of call for system integrators requiring marine displays from small sizes up to large widescreens, computers and panel computers. Our ability to customise our products increases our flexibility even further and ensures our customer's get equipment to their exact specification, whatever that may be.
|
|
|
Hatteland Display is the first port of call for system integrators requiring marine displays from small sizes up to large widescreens, computers and panel computers. Our ability to customise our products increases our flexibility even further and ensures our customer's get equipment to their exact specification, whatever that may be.
|
|
|
Hatteland Display is the first port of call for system integrators requiring marine displays from small sizes up to large widescreens, computers and panel computers. Our ability to customise our products increases our flexibility even further and ensures our customer's get equipment to their exact specification, whatever that may be.
|
|
|
|
