Best suited for ocean going mid-size vessels.

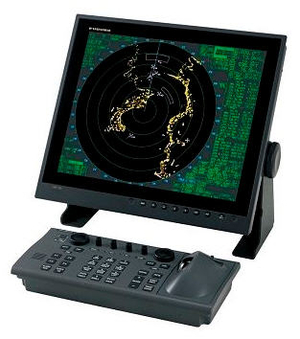

A non-reflection, large size 18-inch high-resolution flat panel display. Hands-free operation from cumbersome adjustment such as setting up TUNING, STC, GAIN, etc. High definition picture available even on the short-range scales, 1/2 NM down to 1/8 NM. Map functions: Nav Lines, Maps and Coastlines overlaid on the screen. Picture offset to any point within 2/3 of the screen radius to gain more viewing range. Collision assessment using the built-in EPA (Electronic Plotting Aid) function in vector form. One-key-one-function plus menu for easy operation. Splash proof display.
|
|
Fully compliant with IMO carriage requirements for ships up to 10,000 gross tons.
Connectable to Hatteland IMO approved 17"/19" high resolution color LCD (Owner Supplied). Hands-free operation from cumbersome adjustment such as setting up TUNING, STC, GAIN, etc. High definition picture available even on the short-range scales, 1/2 NM down to 1/8 NM. Built-in performance monitor. Map functions: Nav Lines, Maps and Coastlines overlaid on the screen. Picture offset to any point within 2/3 of the screen radius to gain more viewing range. Collision assessment using the built-in EPA (Electronic Plotting Aid) function in vector form. One-key-one-function plus menu for easy operation.
|
|
A combination of the MDS-5R or MDS-6R control box and any antenna unit covers full range of Koden radar variety selection.
Ethernet data communication gives interfaceability with almost every PC. Multi PC network system can be constructed.
Recommended Nobeltec charting software IR2 Visual Navigation Suite or Admiral gives you stand alone, side by side or overlay radar image with full radar control in addition to Nobeltec advanced charting capability.
|
|
Big on colour, big on performance
Complete with a 12 channel satellite differential GPS receiver (built-in on the 435i) and fast chart updates, the Raychart 435 and 435i deliver the accuracy you need.
Navigate with colour
High resolution colour display, professional quality vector cartography, and 'point and shoot' navigation makes the Raychart 435/435i the choice for affordable advanced electronic charting.
|
|
- 15-inch multi-color, high-resolution display
- 16-level yellow or green display with day and night color palette
- Dual EBLs and VRMs, with floating origin
- Head-Up, Course-Up, North-Up or Head-up True Bearing and True Motion modes
- True or relative echo trails
- Two target alarm zones
- 10-target Electronic Plotting Aid (EPA) with true or relative vectors
- Two user-programmable function keys for one-touch optimized radar setting
- Optional 20-target Auto Plotter ARP-17 (ATA)
- Optional Video Plotter RP-17
- Optional interface board to provide video output for external monitor
- Optional 42 rpm gearbox available
|
|
|
The JMA-5200 series radar utilises the latest software based digital signal processing. Together with the 3 high speed processors, this realises unique Constaview TM. This function shows real time head up mode that rotates radar image simultaneously with the ships movement, but without the annoying sweep seen normally. Seamless high speed ATA and AIS target tracking is also realised this way.
|
|
Compact 8 is a chartplotter with a very refined design, suitable for medium-sized vessels or for flying bridge helm stations.
Through its big 16:9 screen, which is perfectly visible in full sunlight, you can observe the complete cartography and in the meantime view other functions like e.g. the fish finder function.
Thanks to the supplied bracket you can quickly release the appliance and take it with you.
It is recommended for external use
|
|
Compact 8 is a chartplotter with a very refined design, suitable for medium-sized vessels or for flying bridge helm stations.
Through its big 16:9 screen, which is perfectly visible in full sunlight, you can observe the complete cartography and in the meantime view other functions like e.g. the fish finder function.
Thanks to the supplied bracket you can quickly release the appliance and take it with you.
It is recommended for external use
|
|
|
1st creator of apparatuses of navigation in Ethernet network. Furuno launches in 2001 the NavNet series. Voted by plebiscite in the whole world, it receives the price of the "Best navigation system" into 2002,2003,2004 by the Electronic National Marine Association, celebrates it NMEA.
|
|
1st numerical system of embarked navigation integral sensors and interactive bill-posters multifunction 3D: radar, cartography, depth sounder, GPS, weather, multi-media, BOARD, control engine and superposition 3D.
NavNet 3D of Furuno redefines the user interface of the navigation systems embarked. You with living prepare a true revolution: Enter the world of NavNet 3D.
|
|
- 4 kW output, 36 nm range
- 3 NMEA 0183 ports (2 inputs and 1 output)
- User-programmable function keys
- Automatic optimization of radar picture
- Newly enhanced short range performance
- Cursor position and radar system data output (TTM target data with ARP-10)
- Head-up, Course-up, North-up and True Motion
- Economy Mode, Guard Zone Alarm and Watch Mode
- Optional Autoplotter ARP-10 (10 targets auto/manual acquisition and auto tracking)
|
|
|
The ATA function allows you to plot up to 10 targets and the radar continues to track the targets automatically. Used together with the CPA (Closest Point of Approach) and/or the TCPA (Time to CPA) alarm, reliable collision avoidance increases user's safety at sea.
|
|
|
The 60cm (2ft) radome scanner provides up to 36 NM (nautical miles) of observation range with the powerful 4kW magnetron. The scanner antenna rotates up to a max. 48 times a minute, allowing efficient screen renewal for fast moving vessels. The compact 5.7" display is convenient for pleasure boats or fast moving vessels, where space is limited. Set it on a dashboard or hang it under the roof. Its QVGA (320×240 pixels) display clearly shows the radar echoes in 4 shades.
|
|
|
|
|
|
|
Whether you%u2019re looking for a compact 2kW 20%u201D radar solution or a 25kW 9%u2019 open array, Jeppesen Marine has a variety of radomes and open array units to fit your needs.
Jeppesen Marine realizes that many boating enthusiasts may already use Visual Navigation Suite® or Admiral®, therefore, you have the choice of purchasing radar systems stand-alone or with Admiral or VNS to create an entire onboard network!
Marine Networking
If you%u2019re looking to integrate your radar, software, and GPS unit on a PC or a network of PCs, you can use the InSight Radar 2 (IR2) to bring together the world%u2019s best navigation software with the familiarity of traditional radar to create the ultimate navigation system. IR2 offers unparalleled chart plotting and radar abilities providing higher resolution and greater confidence.
IR2 surpasses traditional radar systems through its use of the award-winning Visual Navigation Suite and Nobeltec Admiral. These navigation programs make the IR2 easy-to-use, affordable to update and provide functionality not found on other radars. What%u2019s more, Nobeltec%u2019s InSight Radar 2 models can be connected to a vessel-wide network, providing all of your nav stations with radar and chart plotting data for true redundancy.
|
|
|
|
|
|
|
InSight%u2122 Radar 2 (IR2-BB%u2122) Black Box
The InSight%u2122 Radar 2 (IR2-BB%u2122) is a revolutionary product that integrates existing radar systems with Nobeltec Admiral and Visual Navigation Suite Software. By interfacing existing radar with the IR2-BB, radar images can be viewed right on top of electronic charts. This provides users with high resolution radar overlay capabilities that until now have cost much more.
Nobeltec%u2019s IR2-BB operates as a secondary display to an existing radar system. This enables users to view radar images on radar display units and on their Nobeltec Navigation Software at the same time. The IR2-BB provides users with higher resolution and greater confidence:
Brings Older Radars Back to Life %u2013 Without the hassle of buying and installing a new radar system, the InSight Radar Box provides boaters with existing radar the opportunity to update to the latest radar display technology.
Radar Made Safe, Easy, and Effective %u2013 All important navigation information is available from a single source. Anti-collision information is provided by the radar and navigation information is provided by Nobeltec Navigation Software.
Position Redundancy %u2013 Radar overlay points out navigational aids that are missing or not in their charted position. In areas of poor or inadequate charting, radar overlay highlights errors in GPS/chart positioning allowing the user to rely on more than one source of real-time position information.
|
|
Big In Performance, Compact In Size!
The T-700 Series LCD True-Color radars are compact radars designed to fit
on almost any boat.
|
|
