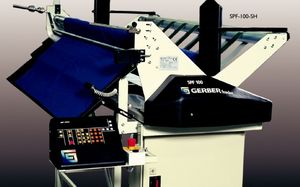

The Power Feed System simplifies material feeding by automatically adjusting tenstion for any material type. It feeds material onto the edge of the table while maintaining consistent tension. Comes in one-roll; two-roll; three-roll; six-roll with cart; or flat fold version.
|
|
|

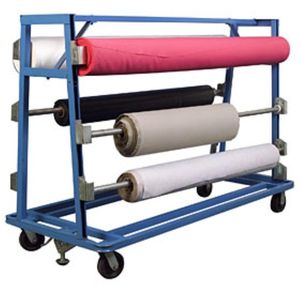

The A-Frame manual feeder is an economical solution for trouble free spreading of different fabrics. Fully portable with a total weight capacity of 1,000 lbs. (453.6 kg) per side.
|
|
The Heavy Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 4000mm
Capacity: 20, 40, 60 rolls
Maxi roll weight 500kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
STORAGE - UNROLLER FOR ROLLS ref: 514/8/10
Model with 8 or 10 bars
Strong frame conceived for 10 rolls of 35kg and 350mm of diameter
4 wheels Ø 125mm polyamide (2 with brakes)
2 free rolls to feed the fabrics towards the cutting table
Spécial models on request
|
|
WAGON OF STORAGE IN SPURS ref: 515
For the storage of rollers of fabric at the post of work.
10 levels of storage for rollers Ø 320mm
maxi load 300kg
Dimension on the ground 1040mm x 900mm Height 1925mm
structure mechanic welded
Wheels of Ø125mm
Can be also made customized and equipped with tablets on every floor.
|
|
|
The Multi-Roll Carousel system, available in many sizes and styles, provides tremendously simple access to multiple material rolls for end of table spreading. With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
The Mini Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 3000mm
From 7 till 33 rolls according to external Ø400MM
Maxi weight per roll 100kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
| ... products without information |
| |
|
The Power Feed System simplifies material feeding by automatically adjusting tenstion for any material type. It feeds material onto the edge of the table while maintaining consistent tension. Comes in one-roll; two-roll; three-roll; six-roll with cart; or flat fold version.
|
|
The Heavy Carousel motorised storage
Available in many sizes and styles,
provides simple access to multiple material rolls
Useful width 1400mm till 4000mm
Capacity: 20, 40, 60 rolls
Maxi roll weight 500kg
With the press of a button, material rolls turn around the carousel, stopping on the desired roll.
|
|
|
With the 100 series pedestal Jefa Steering introduces a new style in classic pedestal design. The traditional "wine glass" shape is combined with modern lines into a beautiful pedestal design. The important accessories like the guardrail and the compass binnacle are integrated into the concept. Due to this innovative design no mountings bolts are visible on any part of the exterior of the pedestal. The integrated compass offers easy and clear readings without the need of a separate binnacle. The 32 mm diameter stainless steel 316 guardrail is firmly attached to the pedestal head offering the best protection for the compass and pedestal combined with a strong support when moving around in the cockpit. The integrated powerful and progressive friction brake can be operated without putting one's hand through the wheel.
|
|
|
With the 200 series pedestal Jefa Steering introduces a new style integrated pedestal design. All major functions for the modern helmsman are integrated in one central steering and control centre: The integrated engine control offers easy installation and quick access. The integrated compass offers easy and clear readings without the need of a separate binnacle. The 25 mm diameter stainless steel 316 guardrail is firmly attached to the pedestal head offering the best protection for the compass and pedestal combined with a strong support when moving around in the cockpit. The glass fibre pedestal head accepts 2 instruments and multiple control buttons. The integrated powerful and progressive friction brake can be operated without putting one's hand through the wheel.
|
|
| ... products without information |
| |
|
|
|
|
|
Robust and reliable
Locomarine rack computers are made from specially developed industrial motherboard prepared for operating in harsh marine environment. Protected with patented Locomarine NZBN™ protection, these computers will withstand high humidity and salinity environment. Quality assurance testing throughout the components ensure all Locomarine rack computers are able to provide stable performance in the most demanding environment.
High performance
Using latest PICMG 1.3 backplate solution, Locomarine marine rack computers can take the best from latest high-performance processors and chipsets. Multiple PCIe links to backplate can operate x1, 4x, 8x or 16x depending on the capabilities of both the SHB and the backplane.
Compatibility
New PICMG 1.3 solution fully supports existing system software and device drivers. PICMG 1.3 has high data transmission speed and wide data brandwidth.
2U-1, Single CPU Card System / 6-slot Full-Size Rackmount Chassis
Construction: Heavy duty metal
SBC form factor: Full-size, slot CPU card
Drive bays: 1x 5.25", 1x front accesible 3.5", 1x 3.5" HDD
Cooling fans: 2x 8 cm
Replaceable fan filters: yes
I/O ports: 2x USB
Expansion slots: 6
PCI: 1
PCIe x1: 2
PCIe x16: 1
Power supply: 300W 110/220 VAC (standard), 9-36 VDC (option), 110/220 VDC redundant (option)
Indicators: Power, HDD
Buttons: 1x power switch, 1x reset
Operating shock: 10G acceleration peak to peak (11ms)
Operating environment: 0 - 50 °C
Operating humidity: 10 - 95%
Weight (N/B): 8.2 kg / 12.4 kg
Dimension (DxWxH): 487.5 x 431 x 88 mm
Warranty: two years
|
|
|
|
|
|
|
Robust and reliable
Locomarine rack computers are made from specially developed industrial motherboard prepared for operating in harsh marine environment. Protected with patented Locomarine NZBN™ protection, these computers will withstand high humidity and salinity environment. Quality assurance testing throughout the components ensure all Locomarine rack computers are able to provide stable performance in the most demanding environment.
High performance
Using latest PICMG 1.3 backplate solution, Locomarine marine rack computers can take the best from latest high-performance processors and chipsets. Multiple PCIe links to backplate can operate x1, 4x, 8x or 16x depending on the capabilities of both the SHB and the backplane.
Compatibility
New PICMG 1.3 solution fully supports existing system software and device drivers. PICMG 1.3 has high data transmission speed and wide data brandwidth.
4U-1, Single CPU Card System / 14-slot Full-Size Rackmount Chassis
Construction: Heavy duty metal
SBC form factor: Full-size, slot CPU card
Drive bays solutions:
3x 5.25" + 1x 3.5" HDD
2x 5.25" + 2x 3.5" HDD
2x 5.25" + 2x front accessible 3.5"
2x 5.25" + 1x 3.5" HDD + 1x front accessible 3.5"
Cooling fans: 2x 8 cm
Replaceable fan filters: yes
I/O ports: 2x USB, 1x PS/2
Expansion slots: 14
PCI: 8
PCIe x1: 3
PCIe x16: 1
Power supply: 300W 110/220 VAC (standard), 9-36 VDC (option), 110/220 VDC redundant (option)
Indicators: Power, HDD
Buttons: 1x power switch, 2x reset
Operating shock: 10G acceleration peak to peak (11ms)
Operating environment: 0 - 50 °C
Operating humidity: 10 - 95%
Weight (N/B): 10.4 kg / 15 kg
Dimension (DxWxH): 413 x 431 x 176 mm
Warranty: two years
|
|
|
|
|
|
|
Robust and reliable
Locomarine rack computers are made from specially developed industrial motherboard prepared for operating in harsh marine environment. Protected with patented Locomarine NZBN™ protection, these computers will withstand high humidity and salinity environment. Quality assurance testing throughout the components ensure all Locomarine rack computers are able to provide stable performance in the most demanding environment.
High performance
Using latest PICMG 1.3 backplate solution, Locomarine marine rack computers can take the best from latest high-performance processors and chipsets. Multiple PCIe links to backplate can operate x1, 4x, 8x or 16x depending on the capabilities of both the SHB and the backplane.
Compatibility
New PICMG 1.3 solution fully supports existing system software and device drivers. PICMG 1.3 has high data transmission speed and wide data brandwidth.
Construction: Heavy duty metal
SBC form factor: Full-size, slot CPU card
Drive bays solutions:
1x 2.5" HDD for each system (4 in total)
Cooling fans: 1x 8 cm for each system (4 in total)
I/O ports: 2x USB (front panel) for each system (4 in total)
Expansion slots for each system: 1 x PCIe x1, 1 x PCIe x16, 1 x PCI
Power supply: 180W 110/220 VAC (standard) for each system (4 in total), 9-36 VDC (option), 110/220 VDC redundant (option)
Indicators: Power, HDD (for each system)
Buttons: 1x power switch + 1x reset (for each system)
Operating shock: 10G acceleration peak to peak (11ms)
Operating environment: 0 - 50 °C
Operating humidity: 10 - 95%
Weight (N/B): 12.5 kg / 16.5 kg
Dimension (DxWxH): 460 x 431 x 176 mm
Warranty: two years
|
|
|
|
