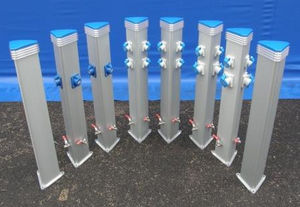

The Arctic service pedestal stands out because of its compact design, while still being able to host a lot of service possibilities. Its slender design makes the Arctic the perfect compact addition to Seijsener’s pedestal range.
Main characteristics:
• Built-to-last thanks to it’s sturdy housing, made of extruded aluminum;
• Co-extruded fast assembly sections make for a minimum of installation time;
• Only little space required (dimensions 160 x 100 x 850mm),
• A multi-purpose service pedestal (fit for power outlets and water tap but also as lighting device or safety station) which contributes to the uniform appeal of a marina.
|
|
Super Yachts
Electro-Tec can provide a large range of services for super yacht berths such as:
Power supplies up to 600A 3 Phase
Socket outlets or directly connected
Water supplies up to 2”
TV / Internet / Data outlets
Sanitation pump out outlets
Super yacht pedestals can be supplied with all Electro-Tec metering systems for both electric and water services.

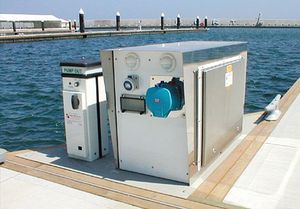

E-Max Superyacht Pedestal
The E-Max is designed to offer a large amount of services to super yacht berths. Capable of accommodating up to 400A 3 Phase socket outlets (or 600A 3 Phase direct connection) and all services detailed above, E-Max is the perfect solution for super yacht berths.
|
|
Bespoke Connection Units
Tell us your design criteria and we will manufacture a pedestal or connection unit to suit, providing electrical and mechanical characteristics allow.
In this unit the clients requirement for his permanent moorings on the River Thames was for a 32A metered electricity supply and a data outlet. A directional diffused light with a 9W low consumption lamp and control gear was also a requirement.
|
|
FRS2
The remote connection unit is designed to be used in conjunction with a 2+2 master control unit. Manufactured from fibreglass and with either one or two socket outlets, the unit is controlled and supplied from a master service pedestal at an adjacent berth. BS EN60898-2 socket outlets, rated at either 16A or 32A can be mounted onto the remote unit and it is supplied with a galvanised shoe, designed to be fixed to your pontoon.
|
|
Service bollard type Pacific
PACIFIC: multifunctional service bollard in aluminium
The PACIFIC pedestal is the next of a new generation bollard constructed from extruded aluminium profile. More compact, lean yet very strong and rigid and fitted with one compartiment only. Leaving no room for any torsion resulting in tightly closed doors for a watertight solution. Different arrangements for electrical services standard with 4 CEE socket outlets; with w/o pre-payment, Sep-Card and Sep-key full automatic meter reading and control. Illumination optional by two downlight LED’s fitted underneath the top cover or impact resistant polycarbonate light head fitted with energy saving lamp. Optional with water tap and hose reel.
|
|
|
Card Meters are one option for the marina operator to recover money for electricity consumed in 'pre-pay' rather than credit format. The reconditioned Card Meters are accessed through customer reset flaps. A card is purchased with a pre-determined value loaded onto it which, when inserted into the meter, loads that value onto the meter. The meter then counts down the pre-loaded value until it is consumed. An emergency credit value of £1.00 is available on each meter. Alterations to the tariff / emergency credit value can be made by the use of a Meterman card.
|
|
|
|
|
|
|
The ESB Mini is a compact variation of the ESB Power Pedestal and is manufactured from the same high quality materials. Designed specifically for marinas requiring basic services or less obtrusive deck mounted equipment, the ESB Mini can provide power up to 32A and is supplied as standard with 15W photocell controlled lighting. The ESB mini is available in most colours and can also be supplied with L.E.D. lighting.
Metering is also available with a maximum of two metered sockets per unit and can utilise Electro-Tec Sentinel metering systems.
Materials
The pedestal outer material can be provided in any material including:
PVC Foam
Electro-Tec only supply UV stable PVC foam materials. PVC is tried and tested in environments worldwide and is available in almost any colour.
Aluminium and Plastic Composite
Composite is an incredibly durable and UV stable material. Consisting of two 0.5mm Aluminium shells thermo-bonded to a polyethylene core, composite is incredibly durable. Due to the unique properties of this material, it also acts as a great insulator by keeping electrical equipment at a constant temperature and within its operating temperatures. This material is available in almost any colour including brushed stainless effect and mirror finish.
|
|
|
|
|
|
|
HDPE CABINET - STAINLESS STEEL MODEL
Service pedestals equipped with prepaid and/or consumption metered system are activated by a transponder, that is a contactless key, programmed by the manager by means of suitable decoder. This key is handed over to the customer at his arrival.
The centralized computation, that needs connection cables to the office, and the prepaid system can coexist in the same service pedestal.
By means of a directional transponder the marina manager can visualize on the service pedestal display the consumptions of energy and water for local computation.
TECHNICAL CHARACTERISTICS
Module:Built in compliance with CE and IEC 364-7-709
Protection class: IP 67
Cabinet:HDPE UV protection (250x350x800h mm) –
Stainlees steel AISI 316 L (170x250x750h mm)
Interlocked sockets:16A to 125A
Protections:Id 30mA – Main switch
Cable connection:3P+N+E – input/output 16 mm² to 300 mm²
Water supply:½” ball valve tap
Lighting:9W low-consumption florescent lamp
Electricity meter:Progressive electricity meter. Display kW/h consumption for each socket
Water meter:Liter-counter and display of progressive metering of each output
Pre-paid system on transponder
Communication:Intercom system
Connections:IP 67 Module, TV-SAT, Telephone, Internet
|
|
Maricer have introduced a new LED lighting panel, which can be fitted onto any of their range of marine service pedestals.
The LED panels are waterproof to IPX7 and are made entirely from tough, non-corrosive UV stable materials, to compliment the lighting diffuser used in the standard pedestal range. Each panel contains the latest multi chip white LED's and offer very low power consumption at 0.2 amp each with a 30,000 hour meantime before failure. Up to four panels can be mounted on to the lighting head giving you the option of directional lighting of your choosing on your pontoon system.
|
|
MEC 2+2
A four way card metered pedestal in black acrylic capped ABS, with a tough 'pinseal' finish to greatly increase scratch resistance. The reconditioned card meters are accessible through reset flaps. Designed to be installed in conjunction with the FRS range of remote connection units, all switch gear and metering is contained within the MEC2 main pedestal.
|
|
UM2I/UM4I
Non-Metered Option
Two or Four Way Bollards without the metering option. The switchgear is housed beneath weatherproof polycarbonate reset flaps which have a locking facility. The standard Residual Current Device arrangement is to provide one device for a two way unit and two for a four way. Alternative options are available upon request.
|
|
MEC4
A four way card metered pedestal in black acrylic capped ABS, with a tough 'pinseal' finish to greatly increase scratch resistance. The reconditioned card meters are accessible through reset flaps. Card metered pedestals allow you to receive money upfront for electricity, a valuable asset.
|
|
Three Phase Pedestals
Large boats and super yachts demand a large electrical supply and the Maricer Three Phase Pedestal Range can accommodate this requirement. Shown here with two 400V 63A 3 Pin + Neutral + Earth IP67 Socket Outlets, each socket outlet is protected by an earth leakage and over current device. A 4 Pole isolator is incorporated into the design to enable safe pedestal isolation. As with all pedestals in the Maricer Range, illumination can be via 16W 2D lamps or LED with photocell 'dusk to dawn' operation
|
|
DM2I/DM4I Metered Option
Two or Four Way Bollards with the metering option. A range of meters can be supplied from the 100A rated Ofgem Approved meter primarily used in the two way unit to the din rail mounted single module 32A rated version utilised in the four way unit. Computerised metering and energy control can also be provided and an alternative brochure covering this option is available upon request. Illumination is provided by means of 2D 16 control gear and lamp along with a 6A Single Pole MCB and P12R Photocell.
|
|
Stainless Steel Pedestals
Manufactured from 1.0mm 316 Grade Stainless Steel, this pedestal range incorporates all the benefits of our PVC internal chassis and base plate with a tough stainless steel skin suitable for marine environments. All the usual configurations are available including water, TV and three phase options. The product can also be offered in 304 Grade Stainless Steel for less harsh environments.
|
|
Service Utility Pillar
Your boatyard or canal location may require the most durable and vandal resistant connection pillar possible. You can have ultimate control of access to the socket outlets and switchgear by means of the lockable door. Up to four 16A 2 Pin + Earth Socket Outlets are located on the aluminium chassis with the switchgear behind a reset flap. The pillar is manufactured from 5.0mm S235 hollow section with a 300mm mounting base. 16A supply plugs can be in place in up to four outlets and the door then locked shut.
|
|
The extension of the existing range of power pedestals with the Atlantic series allows for greater flexibility and faster assembly of control switches, terminal blocks and other control gear to manufacture a marina service stand that will accommodate all services required on a modern marina.
Constructed in extruded, tough, anodised aluminium to tight dimensions. The unit has two hinged doors to separate compartments for water and electricity. Hinges are also of aluminium to eliminate corrosion.
Sloping side panels with grooves give the enclosure a leaner appearance. The lockable service doors face the walkway to avoid blocking the pontoon finger when in service.
|
|
|
The ESB Power pedestal has evolved continually for over a decade. Now capable of accommodating more equipment than ever before the ESB is a versatile option for marina services. The ESB has a distinct advantage to its competition – it will not corrode. The ESB internal support chassis is manufactured from a heavy duty medium density polyethylene and contains no metal parts. This means it can be installed in the most exposed locations and will never suffer from corrosion.
|
|
African Ivory Pedestals
If your looking for a stylish pedestal either to match the finish on your pontoon or to offer a contrast to enhance it's appeal, the African Ivory Range is all you need. Manufactured from 4.0mm Acrylic Capped ABS the plastic has a 'pinseal' finish to add extra scratch resistance, ideal on a busy pontoon.
The two sizes shown here are the 840mm and 600mm high units.
The alternative 1130mm high unit can also be supplied within this range along with varying levels of equipment to suit your needs.
|
|
Accmar’s watertight dock power pedestals are built in the USA to withstand the harshest weather and dockside conditions following strict UL guidelines to ensure safety. Our dock pedestals are available in two sizes: 45" or 38" in height.
Accmar’s power pedestal comes standard with outlet capacity for five receptacles (up to 200 AMPS max per pedestal), water faucet and one hose holder. All are compactly mounted in high quality 5052 H32 marine grade aluminum with 1/8" wall thickness & white powder coated casing (custom colors available).
Each marina power pedestal is equipped with an attractive sensor controlled, low glare, fluorescent lighting fixture to illuminate your dock area. Stainless steel latched door hardware protects the unit’s Square D circuit breakers. Cable TV/telephone receptacle/electric meter & key lock hardware can be added upon request. Special design features ensure maximum life of the unit.
|
|
|
|
|
|
|
For marinas wanting to make a statement, the VX range is the only way to do it. Combining style, practicality and innovative highly durable materials the VX is the ultimate in pedestal design. The VX is the product of a design program spanning several years. The objective - to create a pedestal using the most robust materials while not sacrificing on style and practicality.
The VX is manufactured from a durable composite material consisting of two 0.5mm Aluminium shells thermo-bonded to a polyethylene core, making composite incredibly durable. Due to the unique properties of this material, it also acts as a great insulator by keeping electrical equipment at a constant temperature and within its operating temperatures. This material is available in almost any colour including brushed stainless effect and mirror finish.
The VX internals are manufactured from a medium density polyethylene and no metal parts hence no corrosion – ever.
The VX is supplied with an innovative sliding door system. This system ensures all electrical equipment are offered the maximum amount of protection while keeping the appearance clean and flowing with no visible flaps and switches. Furthermore the sliding door system allows for easy installation and maintenance, simply unlock and open the door and perform the installation or maintenance as required.
|
|
SGPE basic marina service pillar / SGPE service pedestal for marinas
Marina service module made of impact-resistant PE. The blue coloured pedestal with white cap provides different combinations of electricity and water supply. Illumination of the deck by 2-3 halogen lamps. The services can be supplied for free, metered or alternatively pre-paid using Sep-key® or Sep-Card. Quick installation type.
|
|
BORNEO RANGE
made of TECK
IP56 enclosure
lighting (LED low power)
water in option
up to 4 electric sockets
|
|
General protection 500 mA
Departures protection 300 mA
Lighting departure controlled by clock or photocell switch
|
|
The fixed bollard for power supply has been designed to make multiple voltage connections easily. It is available as a single version (up to 6 sockets) or double version (up to 12 sockets). The options are a power supply version, water supply version and combination version.
The bollard is installed by fastening mason screws into a concrete slab. The waterproof level of the units protects the electrical components from oxidizing and bad contacts. Users are protected from electric shock. As an option it is possible to connect one or more sockets while keeping the door closed to avoid unauthorised connections. Made from cast steel and aluminium, this unit gives unequaled impact and vandal resistance.
|
|
|
|
|
|
|
The new Terminal Free Time, designed and developed by Coelin with a particular focus on design and the use of ultramodern technologies, is an energy terminal that can be used in various sectors to meet the requirements of campsites, marinas and public areas in general, distributing and controlling energy services such as electricity, water, compressed air, telephone, TV, intercom, etc.
The simple and refined design combines harmoniously with the environment, becoming an integral part of the surrounding landscape.
All the functions attributed to this terminal, both as a service provider and as a device for illuminating the surrounding area (a real innovation) give this product its own special personality.
The Terminal Free Time structure, designed for heavy-duty service, is built with a double-faced one-piece casing that is shockproof and offers superior stability.
This energy terminal is manufactured with materials that offer the highest resistance against chemical and atmospheric agents, salinity and UV radiation.
Since there are no metallic parts, the terminal offers enhanced insulation and will not rust.
The Terminal Free Time can be supplied in different colours that are created during production.
|
|
|
compact utilities service module Featuring electricity and water consumption measurement, activated by transponder.
|
|
utilities service module featuring electricity and water consumption
measurement, activated by transponder (contact-free identification system). Activation is easily attained by positioning each personalized transponder in close proximity to the service module control system.
|
|
Module Built in compliance with CEandlEC 364-7-709 standards
Protection class IP67
Material HDPE UV protection stainless steel AISI 316 L
|
|
|
